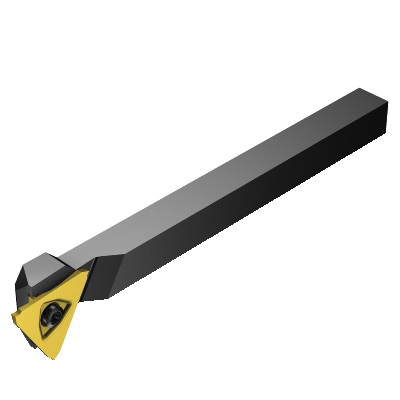

Sandvik Coromant 5740891 CoroCut® 3 Indexable Shank Tool, N123T3-0150-CM insert, T Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5740891 CoroCut® 3 Indexable Shank Tool, N123T3-0150-CM insert, T Insert Seat, Right Hand
SKU475419
MFGR #5740891
Your Cost: $191.00/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 3, Insert Compatibility: N123T3-0150-CM, RF123T023-08BM, 4-1/2 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, T Insert Seat, Right Hand Cutting, 0.2519 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 3, Insert Compatibility: N123T3-0150-CM, RF123T023-08BM, 4-1/2 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, T Insert Seat, Right Hand Cutting, 0.2519 in Maximum Depth of Cut, Steel
Alternate Catalog Number RF123T023-08BM Catalog Number 5740891 Country of Origin IN Gross Weight Per Pack 0.3600 lb Head Length 0.906 in Internal or External External Item Group 480 Material Steel Series CoroCut® 3 Toolholder Style R/LF123T/U..BM Toolholder Type R/LF123T/U..BM UPC 11 69826233356 UPC 12 69826233356 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123T3-0150- CM Insert Seat Size T Maximum Depth of Cut 0.252 in Overall Length 4-1/2 in Screw Type Countersunk Head Shank Size 1/2 in H x 1/2 in W Shank Type Rectangular Precision grooving down to the smallest widths|Maximum versatility - one holder for all insert widths|Cost efficient due to three cutting edges|Stabile interface|3-edge inserts with very close insert indexing tolerance|Designed to maintain the holder intact in case of insert breakage 20 life cycle state Without coolant entry No coolant exit 90 deg cutting edge 23.012 mm minimum overhang 3 Nm torque 0 deg inclination 0 deg rake ANSI Code: RF123T023-08BM ISO Code: RF123T023-08BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123T023-08BM |
| Catalog Number | 5740891 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.3600 lb |
| Head Length | 0.906 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 3 |
| Toolholder Style | R/LF123T/U..BM |
| Toolholder Type | R/LF123T/U..BM |
| UPC 11 | 69826233356 |
| UPC 12 | 69826233356 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123T3-0150- CM |
| Insert Seat Size | T |
| Maximum Depth of Cut | 0.252 in |
| Overall Length | 4-1/2 in |
| Screw Type | Countersunk Head |
| Shank Size | 1/2 in H x 1/2 in W |
| Shank Type | Rectangular |
| Precision grooving down to the smallest widths|Maximum versatility - one holder for all insert widths|Cost efficient due to three cutting edges|Stabile interface|3-edge inserts with very close insert indexing tolerance|Designed to maintain the holder intact in case of insert breakage |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 90 deg cutting edge |
| 23.012 mm minimum overhang |
| 3 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: RF123T023-08BM |
| ISO Code: RF123T023-08BM |
