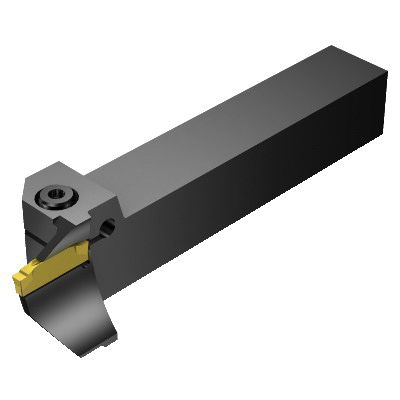

Sandvik Coromant 5740888 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5740888 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU726522
MFGR #5740888
Your Cost: $303.15/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RF123H25-2525B-132BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, 9.055 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RF123H25-2525B-132BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, 9.055 in Inscribed Circle, Steel
Alternate Catalog Number RF123H25-2525B-132BM Catalog Number 5740888 Country of Origin SE Gross Weight Per Pack 1.5100 lb Item Group 480 Material Steel Maximum Workpiece Diameter 9.055 in Minimum Hole Diameter 5.197 in Series CoroCut® 1-2 Through Coolant No Toolholder Type RF123H25 UPC 11 69826219570 UPC 12 69826219570 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 5.906 in Screw Type Socket Head Cap Shank Size 0.984 in H x 0.984 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 47 mm minimum overhang 24 mm width to cutting item reference point 5.3 Nm torque 2 axial groove support direction 25 mm W shank 26 mm W functiona ANSI Code: RF123H25-2525B-132BM ISO Code: RF123H25-2525B-132BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123H25-2525B-132BM |
| Catalog Number | 5740888 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.5100 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 9.055 in |
| Minimum Hole Diameter | 5.197 in |
| Series | CoroCut® 1-2 |
| Through Coolant | No |
| Toolholder Type | RF123H25 |
| UPC 11 | 69826219570 |
| UPC 12 | 69826219570 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 5.906 in |
| Screw Type | Socket Head Cap |
| Shank Size | 0.984 in H x 0.984 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 47 mm minimum overhang |
| 24 mm width to cutting item reference point |
| 5.3 Nm torque |
| 2 axial groove support direction |
| 25 mm W shank |
| 26 mm W functiona |
| ANSI Code: RF123H25-2525B-132BM |
| ISO Code: RF123H25-2525B-132BM |
