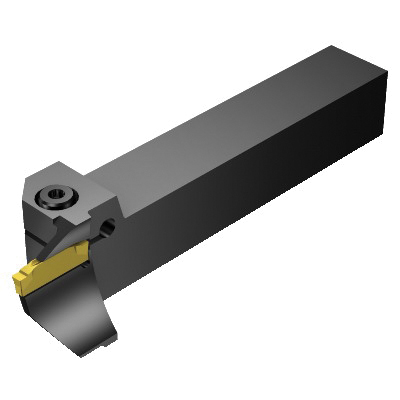

Sandvik Coromant 5740844 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5740844 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1170500
MFGR #5740844
Your Cost: $305.86/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G047-16B-034B, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, G Insert Seat, Right Hand Cutting, 1.3385 in ID x 1.5748 to 1.7322 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G047-16B-034B, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, G Insert Seat, Right Hand Cutting, 1.3385 in ID x 1.5748 to 1.7322 in OD Groove Width, Steel
Alternate Catalog Number RF123G047-16B-034B Catalog Number 5740844 Country of Origin SE Gross Weight Per Pack 1.7000 lb Item Group 480 Material Steel Maximum Workpiece Diameter 1.732 in Minimum Hole Diameter 1.339 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RF123G047 UPC 11 69826242765 UPC 12 69826242765 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 6 in Screw Type Socket Head Cap Shank Size 1 in H x 1 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 31.9278 mm minimum overhang 24.8906 mm width to cutting item reference point 4 Nm torque 2 axial groove support direction 25.4 mm W shank 26.3906 mm W functiona ANSI Code: RF123G047-16B-034B ISO Code: RF123G047-16B-034B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123G047-16B-034B |
| Catalog Number | 5740844 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.7000 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 1.732 in |
| Minimum Hole Diameter | 1.339 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RF123G047 |
| UPC 11 | 69826242765 |
| UPC 12 | 69826242765 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 6 in |
| Screw Type | Socket Head Cap |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 31.9278 mm minimum overhang |
| 24.8906 mm width to cutting item reference point |
| 4 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 26.3906 mm W functiona |
| ANSI Code: RF123G047-16B-034B |
| ISO Code: RF123G047-16B-034B |
