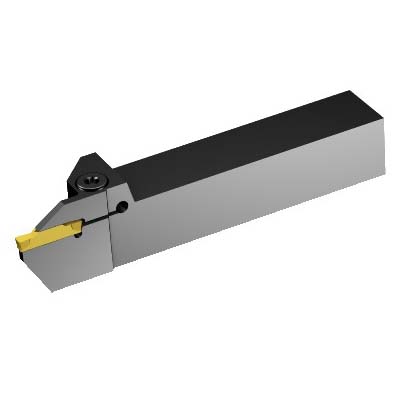

Sandvik Coromant 5740843 CoroCut® 1-2 Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5740843 CoroCut® 1-2 Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Right Hand
SKU1108911
MFGR #5740843
Your Cost: $197.88/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123D2-0150-0002-CM, RF123D08-1616B, 3.937 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, D Insert Seat, Right Hand Cutting, 0.3149 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123D2-0150-0002-CM, RF123D08-1616B, 3.937 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, D Insert Seat, Right Hand Cutting, 0.3149 in Maximum Depth of Cut, Steel
Alternate Catalog Number RF123D08-1616B Catalog Number 5740843 Country of Origin SE Gross Weight Per Pack 0.4600 lb Head Length 25.5 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 Toolholder Style R/LF123..B Toolholder Type R/LF123..B UPC 11 69826212599 UPC 12 69826212599 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123D2-0150- CM Insert Seat Size D Maximum Depth of Cut 8 mm Overall Length 100 mm Screw Type Socket Head Shank Size 16 mm H x 16 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry No coolant exit 90 deg cutting edge 25.5 mm minimum overhang 2.5 Nm torque 0 deg inclination 0 deg rake ANSI Code: RF123D08-1616B ISO Code: RF123D08-1616B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123D08-1616B |
| Catalog Number | 5740843 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4600 lb |
| Head Length | 25.5 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 |
| Toolholder Style | R/LF123..B |
| Toolholder Type | R/LF123..B |
| UPC 11 | 69826212599 |
| UPC 12 | 69826212599 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123D2-0150- CM |
| Insert Seat Size | D |
| Maximum Depth of Cut | 8 mm |
| Overall Length | 100 mm |
| Screw Type | Socket Head |
| Shank Size | 16 mm H x 16 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 90 deg cutting edge |
| 25.5 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: RF123D08-1616B |
| ISO Code: RF123D08-1616B |
