Sandvik Coromant

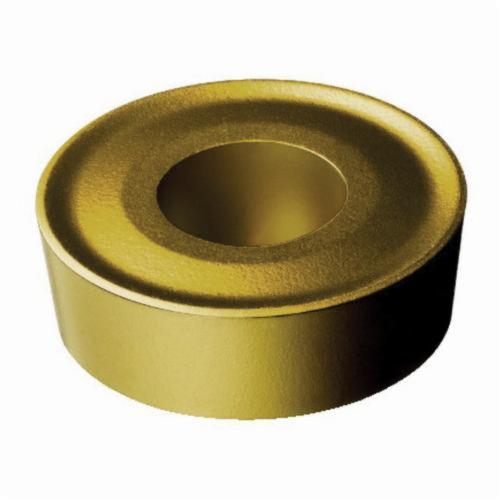

Sandvik Coromant 5740660 T-Max® P Negative Basic Shape Turning Insert, RCMX 12 04 00E 235, R-Round, RCMX Insert, 235
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5740660 T-Max® P Negative Basic Shape Turning Insert, RCMX 12 04 00E 235, R-Round, RCMX Insert, 235
SKU1246116
MFGR #5740660
Your Cost: $13.99/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, RCMX Insert, R-Round, 4.8 mm Maximum Depth of Cut, 0.4724 in Inscribed Circle, 0.1874 in Thickness, RCMX Chipbreaker, 0.2362 in Corner Radius, 0.1653 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: RCMX 12 04 00E 235, ISO Code: RCMX 12 04 00E 235, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, RCMX Insert, R-Round, 4.8 mm Maximum Depth of Cut, 0.4724 in Inscribed Circle, 0.1874 in Thickness, RCMX Chipbreaker, 0.2362 in Corner Radius, 0.1653 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: RCMX 12 04 00E 235, ISO Code: RCMX 12 04 00E 235, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number RCMX 12 04 00E 235 ANSI Code RCMX 12 04 00E 235 Brand Sandvik Coromant Catalog Number 5740660 Corner Radius 0.236 in Country of Origin RU Cutting Direction Neutral Finish CVD-TiCN+TiN Coated For Use On Stainless Steel and Steel Gross Weight Per Pack 0.1700 lb Inscribed Circle 0.472 in Insert Style RCMX ISO Code RCMX 12 04 00E 235 Item Group 110 Manufacturer Sandvik Coromant Manufacturer's Grade 235 Material Carbide Material Grade M, P Maximum Depth of Cut 0.189 in Rake Negative Relief Angle 7 ° Seat Size 12 Series T-Max® P Shape Round Stock Status NONSTOCK Thickness 0.187 in Type 1-Sided UPC 11 69826266327
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | RCMX 12 04 00E 235 |
| ANSI Code | RCMX 12 04 00E 235 |
| Brand | Sandvik Coromant |
| Catalog Number | 5740660 |
| Corner Radius | 0.236 in |
| Country of Origin | RU |
| Cutting Direction | Neutral |
| Finish | CVD-TiCN+TiN Coated |
| For Use On | Stainless Steel and Steel |
| Gross Weight Per Pack | 0.1700 lb |
| Inscribed Circle | 0.472 in |
| Insert Style | RCMX |
| ISO Code | RCMX 12 04 00E 235 |
| Item Group | 110 |
| Manufacturer | Sandvik Coromant |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M, P |
| Maximum Depth of Cut | 0.189 in |
| Rake | Negative |
| Relief Angle | 7 ° |
| Seat Size | 12 |
| Series | T-Max® P |
| Shape | Round |
| Stock Status | NONSTOCK |
| Thickness | 0.187 in |
| Type | 1-Sided |
| UPC 11 | 69826266327 |
