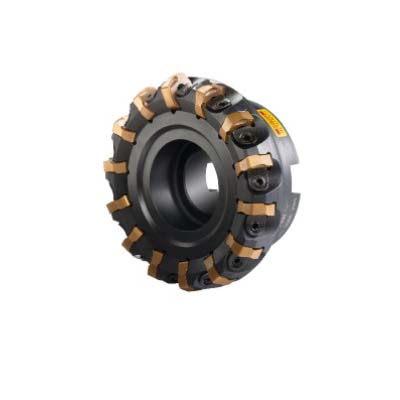

Sandvik Coromant 5740295 CoroMill® 365 Face Milling Cutter, 3 in Cutting, 1 in Shank, 1.9685 in OAL, R/LA365..Rxx-W Insert, 0.2362 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 5740295 CoroMill® 365 Face Milling Cutter, 3 in Cutting, 1 in Shank, 1.9685 in OAL, R/LA365..Rxx-W Insert, 0.2362 in Max Depth of Cut
SKU1113899
MFGR #5740295
Your Cost: $1,421.73/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 365, 3 in Cutting Dia, 1.9685 in Overall Length, 0.2362 in Maximum Depth of Cut, R/LA365..Rxx-W Insert, 10 Inserts, Insert Compatibility: R365-1505ZNE, 1 in Shank Dia, Right Hand Cutting, 65 deg Cutting Angle, ANSI Code: RA365-076R25-W15H, ISO Code: RA365-076R25-W15H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 365, 3 in Cutting Dia, 1.9685 in Overall Length, 0.2362 in Maximum Depth of Cut, R/LA365..Rxx-W Insert, 10 Inserts, Insert Compatibility: R365-1505ZNE, 1 in Shank Dia, Right Hand Cutting, 65 deg Cutting Angle, ANSI Code: RA365-076R25-W15H, ISO Code: RA365-076R25-W15H, Steel
Alternate Catalog Number RA365-076R25-W15H ANSI Code RA365-076R25-W15H Catalog Number 5740295 Country of Origin SE Gross Weight Per Pack 2.5300 lb Head Length RA365-076R25-W15H Insert Gage Screw 25.4 mm ISO Code RA365-076R25-W15H Item Group 450 Material Steel Series CoroMill® 365 Standards ISO 6462:2011 Type 6 mm UPC 11 69826239934 UPC 12 69826239934 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 65 deg Cutting Diameter 3 in Cutting Direction Right Hand Insert Compatibility R365-1505ZNE Insert Style R/LA365..Rxx-W Maximum Depth of Cut 0.2362 in Number of Inserts 10 Overall Length 1.9685 in Shank Diameter 1 in Shank Length 50 mm Shank Type 65 deg Without coolant entry Wedge clamping interface 82.9 mm Dia maximum cutting 9.75 mm W keyway 50 mm overhang 0 deg maximum ramping 11600 r/min cutting feed 6 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RA365-076R25-W15H |
| ANSI Code | RA365-076R25-W15H |
| Catalog Number | 5740295 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.5300 lb |
| Head Length | RA365-076R25-W15H |
| Insert Gage Screw | 25.4 mm |
| ISO Code | RA365-076R25-W15H |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 365 |
| Standards | ISO 6462:2011 |
| Type | 6 mm |
| UPC 11 | 69826239934 |
| UPC 12 | 69826239934 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 65 deg |
| Cutting Diameter | 3 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R365-1505ZNE |
| Insert Style | R/LA365..Rxx-W |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 10 |
| Overall Length | 1.9685 in |
| Shank Diameter | 1 in |
| Shank Length | 50 mm |
| Shank Type | 65 deg |
| Without coolant entry |
| Wedge clamping interface |
| 82.9 mm Dia maximum cutting |
| 9.75 mm W keyway |
| 50 mm overhang |
| 0 deg maximum ramping |
| 11600 r/min cutting feed |
| 6 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
