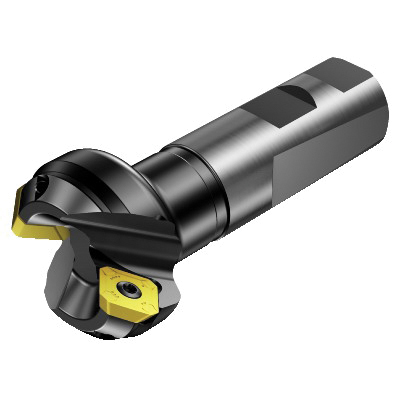

Sandvik Coromant 5739727 CoroMill® 245 Face Milling Cutter, 2-1/2 in Cutting, 1-1/4 in Shank, 3.9763 in OAL, RA245..MNxx Insert, 0.24 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 5739727 CoroMill® 245 Face Milling Cutter, 2-1/2 in Cutting, 1-1/4 in Shank, 3.9763 in OAL, RA245..MNxx Insert, 0.24 in Max Depth of Cut
SKU1254692
MFGR #5739727
Your Cost: $865.73/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 245, 2-1/2 in Cutting Dia, 3.9763 in Overall Length, 0.24 in Maximum Depth of Cut, RA245..MNxx Insert, 5 Inserts, Insert Compatibility: R245-12T3, 1-1/4 in Shank Dia, Right Hand Cutting, 45 deg Cutting Angle, ANSI Code: RA245-063MN32-12M, ISO Code: RA245-063MN32-12M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 245, 2-1/2 in Cutting Dia, 3.9763 in Overall Length, 0.24 in Maximum Depth of Cut, RA245..MNxx Insert, 5 Inserts, Insert Compatibility: R245-12T3, 1-1/4 in Shank Dia, Right Hand Cutting, 45 deg Cutting Angle, ANSI Code: RA245-063MN32-12M, ISO Code: RA245-063MN32-12M, Steel
Alternate Catalog Number RA245-063MN32-12M ANSI Code RA245-063MN32-12M Catalog Number 5739727 Country of Origin US Finish 14400 Gross Weight Per Pack 3.0800 lb Head Length 5 Insert Gage Screw 31.75 mm ISO Code RA245-063MN32-12M Item Group 450 Key 5680048-01 Material Steel Series CoroMill® 245 Shim Style 5322472-01 Type 5762609 Shim, 5763104 Shim Screw, 5763189 Screw, 5764016 Key and 5764158 Key UPC 11 69826246298 Warranty 5512090-09 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 45 deg Cutting Diameter 2-1/2 in Cutting Direction Right Hand Insert Compatibility R245-12T3 Insert Style RA245..MNxx Maximum Depth of Cut 0.24 in Number of Inserts 5 Overall Length 3.9763 in Shank Diameter 1-1/4 in Shank Length RA245..MNxx Shank Type 5513020-01 5.99948 mm L body Without coolant entry 40 - 60 deg insert screw clamping interface 75.9968 mm Dia maximum cutting 29.36 mm h shank 40 mm overhang 0 deg maximum ramping 14400 r/min 3 Nm torque 20 life cycle state Whistle notch/Weldon (DIN1835-B/E) adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RA245-063MN32-12M |
| ANSI Code | RA245-063MN32-12M |
| Catalog Number | 5739727 |
| Country of Origin | US |
| Finish | 14400 |
| Gross Weight Per Pack | 3.0800 lb |
| Head Length | 5 |
| Insert Gage Screw | 31.75 mm |
| ISO Code | RA245-063MN32-12M |
| Item Group | 450 |
| Key | 5680048-01 |
| Material | Steel |
| Series | CoroMill® 245 |
| Shim Style | 5322472-01 |
| Type | 5762609 Shim, 5763104 Shim Screw, 5763189 Screw, 5764016 Key and 5764158 Key |
| UPC 11 | 69826246298 |
| Warranty | 5512090-09 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 45 deg |
| Cutting Diameter | 2-1/2 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R245-12T3 |
| Insert Style | RA245..MNxx |
| Maximum Depth of Cut | 0.24 in |
| Number of Inserts | 5 |
| Overall Length | 3.9763 in |
| Shank Diameter | 1-1/4 in |
| Shank Length | RA245..MNxx |
| Shank Type | 5513020-01 |
| 5.99948 mm L body |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| 75.9968 mm Dia maximum cutting |
| 29.36 mm h shank |
| 40 mm overhang |
| 0 deg maximum ramping |
| 14400 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Whistle notch/Weldon (DIN1835-B/E) adaptive interface |
