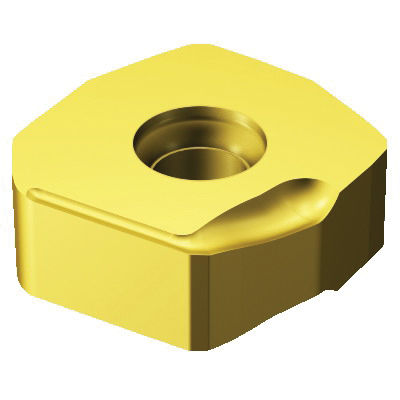

Sandvik Coromant 5739007 CoroMill® 365 Milling Insert, N365-1505ZNE-KW8 1020, N365-KW8 Insert, Carbide, 1020, N365-1505ZNE-KW8 1020
N365 Milling Inserts
1237656
MFG #: 5739007
Sandvik Coromant
35.23000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 365, N365-KW8 Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, KW8 Chipbreaker, 0.0078 in Corner Radius, 20 deg Positive Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: N365-1505ZNE-KW8 1020, ISO Code: N365-1505ZNE-KW8 1020, Neutral Hand, Carbide, PVD Coated, Material Grade: K
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.9 mm L x 0.75 mm W corner chamfer |
| 8 mm L wiper edge |
| 431 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 1 corner |
| S cutting edge condition |
| 1 cutting edge |
| Screw clamp mounting |
| 0.12 - 0.31 mm/r cutting feed |
