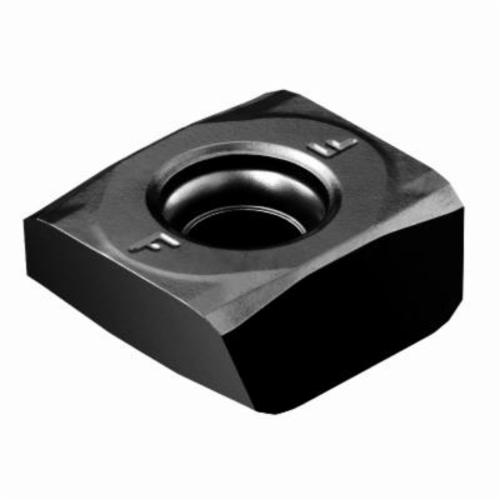

Sandvik Coromant 5738429 Auto AF Milling Insert, N260.8-1204-L 3020, N-55 deg Parallelogram, N260.8-L Insert, Carbide, 3020, N260.8-1204-L 3020
Custom_Product_Images_Illustration
Sandvik Coromant 5738429 Auto AF Milling Insert, N260.8-1204-L 3020, N-55 deg Parallelogram, N260.8-L Insert, Carbide, 3020, N260.8-1204-L 3020
SKU1249870
MFGR #5738429
Your Cost: $32.51/ea
List: Sandvik Coromant Milling Insert, Series: Auto AF, N260.8-L Insert, N-55 deg Parallelogram, 1/2 in Thickness, L Chipbreaker, 0.0708 in Corner Radius, Manufacturer's Grade: 3020, ANSI Code: N260.8-1204-L 3020, ISO Code: N260.8-1204-L 3020, Neutral Hand, Carbide, MTCVD Coated, Material Grade: H/K
Sandvik Coromant Milling Insert, Series: Auto AF, N260.8-L Insert, N-55 deg Parallelogram, 1/2 in Thickness, L Chipbreaker, 0.0708 in Corner Radius, Manufacturer's Grade: 3020, ANSI Code: N260.8-1204-L 3020, ISO Code: N260.8-1204-L 3020, Neutral Hand, Carbide, MTCVD Coated, Material Grade: H/K
Alternate Catalog Number N260.8-1204-L 3020 ANSI Code N260.8-1204-L 3020 Catalog Number 5738429 Corner Radius 0.0708 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 8 ISO Code N260.8-1204-L 3020 Item Group 170 Lead Angle L Length N - 55 deg Parallelogram Series Auto AF Thickness 1/2 in Type N260.8-1204-L 3020 UPC 11 69826279374 Warranty 12.7 mm Width H, K Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Inscribed Circle Carbide Insert Size N260.8-1204-L 3020 Insert Style N260.8-L Manufacturer's Grade 3020 Material Carbide Material Grade H/K Rake 12.7 mm Shape N-55 deg Parallelogram 40 - 60 deg countersunk hole and non-flat surface clamping interface 75 deg cutting edge angle 20 life cycle state 2.5 mm wiper edge 2-side cutting 0.08 - 0.21 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N260.8-1204-L 3020 |
| ANSI Code | N260.8-1204-L 3020 |
| Catalog Number | 5738429 |
| Corner Radius | 0.0708 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 8 |
| ISO Code | N260.8-1204-L 3020 |
| Item Group | 170 |
| Lead Angle | L |
| Length | N - 55 deg Parallelogram |
| Series | Auto AF |
| Thickness | 1/2 in |
| Type | N260.8-1204-L 3020 |
| UPC 11 | 69826279374 |
| Warranty | 12.7 mm |
| Width | H, K |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Inscribed Circle | Carbide |
| Insert Size | N260.8-1204-L 3020 |
| Insert Style | N260.8-L |
| Manufacturer's Grade | 3020 |
| Material | Carbide |
| Material Grade | H/K |
| Rake | 12.7 mm |
| Shape | N-55 deg Parallelogram |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 75 deg cutting edge angle |
| 20 life cycle state |
| 2.5 mm wiper edge |
| 2-side cutting |
| 0.08 - 0.21 mm/r cutting feed |
