Sandvik Coromant

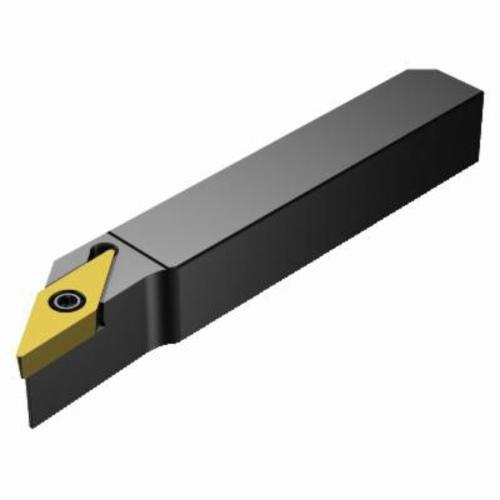

Sandvik Coromant 5738213 CoroTurn 107 Shank Tool, QS-SVJBR/L Tool Holder, VBMT 160408 (MIIDM) and VBMT 332 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5738213 CoroTurn 107 Shank Tool, QS-SVJBR/L Tool Holder, VBMT 160408 (MIIDM) and VBMT 332 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU1229359
MFGR #5738213
Your Cost: $176.92/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJBR/L Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 1/2 in H x 1/2 in W Shank, Insert Compatibility: VBMT 160408 (MIIDM) and VBMT 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJBR 083X, ISO Code: QS-SVJBR 083X, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJBR/L Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 1/2 in H x 1/2 in W Shank, Insert Compatibility: VBMT 160408 (MIIDM) and VBMT 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJBR 083X, ISO Code: QS-SVJBR 083X, 0 deg Rake, Steel
ANSI Code QS-SVJBR 083X Back of Bar to Cutting Edge QS-SVJBR 083X Catalog Number 5738213 Country of Origin IN Gross Weight Per Pack 0.3000 lb Head Length 0 deg Inscribed Circle -3 deg Insert Seat Size 3/8 ISO Code QS-SVJBR 083X Material Steel Series CoroTurn 107 Shank Type Rectangle Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility VBMT 160408 (MIIDM) and VBMT 332 (MIIDN) Lead Angle -3 deg Overall Length 2.7559 in Rake 0 deg Shank Size 1/2 in H x 1/2 in W Tool Holder Style QS-SVJBR/L 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit 0 deg inclination 93 deg cutting edge 50 deg maximum ramping 20 life cycle state 30 mm maximum overhang 3 Nm torque 12.7 mm W functional 40 - 60 deg insert screw clamping V - 35 deg diamond insert ANSI Code: QS-SVJBR 083X ISO Code: QS-SVJBR 083X
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | QS-SVJBR 083X |
| Back of Bar to Cutting Edge | QS-SVJBR 083X |
| Catalog Number | 5738213 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.3000 lb |
| Head Length | 0 deg |
| Inscribed Circle | -3 deg |
| Insert Seat Size | 3/8 |
| ISO Code | QS-SVJBR 083X |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | VBMT 160408 (MIIDM) and VBMT 332 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 2.7559 in |
| Rake | 0 deg |
| Shank Size | 1/2 in H x 1/2 in W |
| Tool Holder Style | QS-SVJBR/L |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 93 deg cutting edge |
| 50 deg maximum ramping |
| 20 life cycle state |
| 30 mm maximum overhang |
| 3 Nm torque |
| 12.7 mm W functional |
| 40 - 60 deg insert screw clamping |
| V - 35 deg diamond insert |
| ANSI Code: QS-SVJBR 083X |
| ISO Code: QS-SVJBR 083X |
