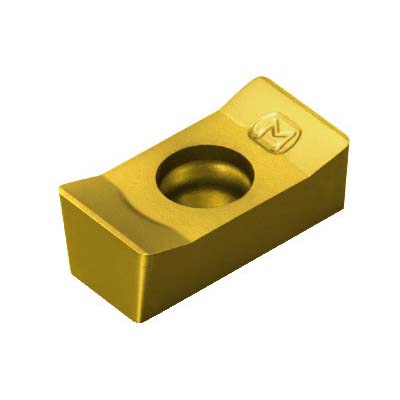

Sandvik Coromant 5737967 CoroMill® 331 Slotting Insert, N331.1A-11 50 08H-MM2030, L-Rectangle, N331.1A..H-MM Insert, Carbide, 2030, N331.1A-11 50 08H-MM2030
N331 Milling Inserts
984359
MFG #: 5737967
Sandvik Coromant
17.82000
/ ea
Sandvik Coromant Slotting Insert, Series: CoroMill® 331, N331.1A..H-MM Insert, L-Rectangle, 0.453 in Inscribed Circle, 0.1948 in Thickness, 0.4527 in Width, 0.4527 in Length, MM Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: N331.1A-11 50 08H-MM2030, ISO Code: N331.1A-11 50 08H-MM2030, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P
- Features
| 0 deg clearance |
| 20 life cycle state |
| 10.7 mm D max cutting |
| 1.2 mm L wiper edge |
| F cutting edge condition |
| 4 edges |
| Medium operation |
| 40 to 60 deg countersunk hole and non-flat surface |
| 90 deg included |
| 3 insert mounting style |
| 90 deg cutting edge |
| 10.7 mm L cutting edge effective |
| 11 insert seat |
| H tolerance class insert |
| 0.08 to 0.25 mm/r cutting feed |
| Screw clamp mounting style |
