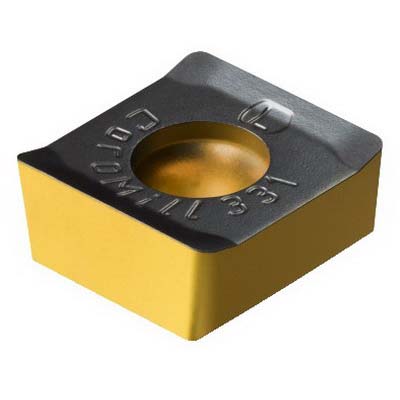

Sandvik Coromant 5737849 CoroMill® 331 Slotting Insert, N331.1A-14 50 08H-PL4240 ANSI, L-Rectangle, N331.1A..H-PL Insert, 4240
N331 Milling Inserts
491192
MFG #: 5737849
Sandvik Coromant
21.88000
/ ea
Sandvik Coromant Slotting Insert, Series: CoroMill® 331, N331.1A..H-PL Insert, L-Rectangle, 0.571 in Inscribed Circle, 0.1948 in Thickness, 0.4527 in Width, 0.5708 in Length, PL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: N331.1A-14 50 08H-PL4240, ISO Code: N331.1A-14 50 08H-PL4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
- Features
| 0 deg clearance |
| 20 life cycle state |
| 13.7 mm D max cutting |
| 1.2 mm L wiper edge |
| F cutting edge condition |
| 4 edges |
| Light operation |
| 40 to 60 deg countersunk hole and non-flat surface |
| 90 deg included |
| 3 insert mounting style |
| 90 deg cutting edge |
| 13.7 mm L cutting edge effective |
| 14 insert seat |
| H tolerance class insert |
| 0.07 to 0.22 mm/r cutting feed |
| Screw clamp mounting style |
