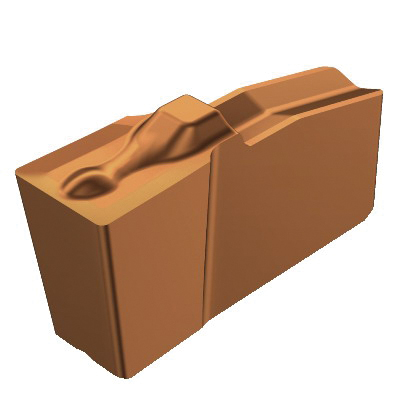

Sandvik Coromant 5737158 T-Max® Q-Cut Grooving Insert, N151.2-200-20-4G 1125, N151.2-4G Insert, 0.0787 in W Cutting, 1125, N151.2-200-20-4G 1125
N151 Grooving Inserts
494181
MFG #: 5737158
Sandvik Coromant
21.55000
/ ea
Sandvik Coromant Grooving Insert, Series: T-Max® Q-Cut, N151.2-4G Insert, 0.0787 in Cutting Width, 0 deg Lead Angle, 4G Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 0.2211 in Thickness, Manufacturers Grade: 1125, ANSI Code: N151.2-200-20-4G 1125, ISO Code: N151.2-200-20-4G 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| V or rail clamp mounting style with screw |
| 1 edge |
| 0.03 - 0.12 mm/r cutting feed |
| 7 insert mounting style code |
| 20 insert seat size code |
