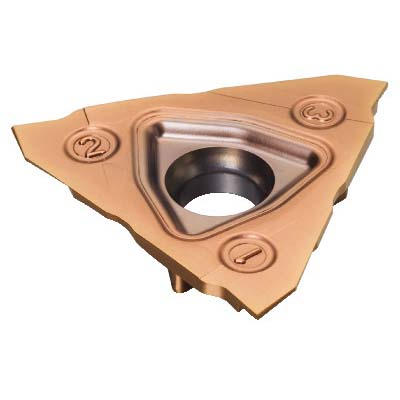

Sandvik Coromant 5737083 CoroCut® 3, N123U3-0050-RS 1125, N123U3-RS Insert, Carbide, 0.0118 in Max Depth of Cut, M/N/P
Custom_Product_Images_Illustration
Sandvik Coromant 5737083 CoroCut® 3, N123U3-0050-RS 1125, N123U3-RS Insert, Carbide, 0.0118 in Max Depth of Cut, M/N/P
SKU1249499
MFGR #5737083
Your Cost: $57.42/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 3, N123U3-RS Insert, 0.0118 in Maximum Depth of Cut, 0.222 in Thickness, 0.4094 in Length, RS Chipbreaker, ANSI Code: N123U3-0050-RS 1125, 0.0098 in Corner Radius, Manufacturer's Grade: 1125, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P
Sandvik Coromant Profiling Insert, Series: CoroCut® 3, N123U3-RS Insert, 0.0118 in Maximum Depth of Cut, 0.222 in Thickness, 0.4094 in Length, RS Chipbreaker, ANSI Code: N123U3-0050-RS 1125, 0.0098 in Corner Radius, Manufacturer's Grade: 1125, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P
Alternate Catalog Number N123U3-0050-RS 1125 ANSI Code N123U3-0050-RS 1125 Catalog Number 5737083 Corner Radius 0.0098 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0800 lb Hand of Insert Neutral Included Angle 3 ISO Code 0.25 mm Item Group 320 Length 0.4094 in Maximum Depth of Cut 0.0118 in Relief Angle 5.64 mm Series CoroCut® 3 Thickness 0.222 in Type 0.3 mm UPC 11 69826248840 Width M/N/P Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RS Inscribed Circle N123U3-RS Insert Size 10.4 mm Insert Style N123U3-RS Manufacturer's Grade 1125 Material Carbide Material Grade M/N/P Rake Positive in Shape RS 7 deg clearance 20 life cycle state 0 deg body machine side 0.5 mm W cutting E cutting edge condition Finishing operation 40 - 60 deg countersunk hole and flat surface -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance 90 deg ramping 1 edge 0 deg lead Screw clamp mounting 0.02 - 0.08 mm/r cutting feed 3 insert mounting style code U insert seat size ANSI Code: N123U3-0050-RS 1125 ISO Code: N123U3-0050-RS 1125
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N123U3-0050-RS 1125 |
| ANSI Code | N123U3-0050-RS 1125 |
| Catalog Number | 5737083 |
| Corner Radius | 0.0098 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0800 lb |
| Hand of Insert | Neutral |
| Included Angle | 3 |
| ISO Code | 0.25 mm |
| Item Group | 320 |
| Length | 0.4094 in |
| Maximum Depth of Cut | 0.0118 in |
| Relief Angle | 5.64 mm |
| Series | CoroCut® 3 |
| Thickness | 0.222 in |
| Type | 0.3 mm |
| UPC 11 | 69826248840 |
| Width | M/N/P |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RS |
| Inscribed Circle | N123U3-RS |
| Insert Size | 10.4 mm |
| Insert Style | N123U3-RS |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | M/N/P |
| Rake | Positive in |
| Shape | RS |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.5 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| 40 - 60 deg countersunk hole and flat surface |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0 deg lead |
| Screw clamp mounting |
| 0.02 - 0.08 mm/r cutting feed |
| 3 insert mounting style code |
| U insert seat size |
| ANSI Code: N123U3-0050-RS 1125 |
| ISO Code: N123U3-0050-RS 1125 |
