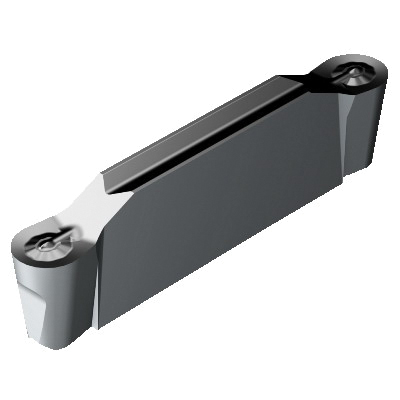

Sandvik Coromant 5736817 CoroCut® 1-2, N123J2-0600-RO 1105, N123x2-RO Insert, Carbide, 0.1102 in Max Depth of Cut, M/S
Custom_Product_Images_Illustration
Sandvik Coromant 5736817 CoroCut® 1-2, N123J2-0600-RO 1105, N123x2-RO Insert, Carbide, 0.1102 in Max Depth of Cut, M/S
SKU1247422
MFGR #5736817
Your Cost: $55.61/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RO Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123J2-0600-RO 1105, 0.1181 in Corner Radius, Manufacturer's Grade: 1105, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RO Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123J2-0600-RO 1105, 0.1181 in Corner Radius, Manufacturer's Grade: 1105, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123J2-0600-RO 1105 ANSI Code N123J2-0600-RO 1105 Catalog Number 5736817 Corner Radius 0.1181 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.2300 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.1102 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1712 in UPC 11 69826234948 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RO Insert Size J2 Insert Style N123x2-RO Manufacturer's Grade 1105 Material Carbide Material Grade M, S Rake Positive Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 6 mm w cutting E cutting edge condition Finishing operation Concave clamping -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.01 mm corner radius lower tolerance 0.01 mm corner radius upper tolerance 90 deg ramping 2 edges 0 deg lead V or rail clamp with screw mounting 0.15 - 0.23 mm/r cutting feed 7 insert mounting style code J insert seat size ANSI Code: N123J2-0600-RO 1105 ISO Code: N123J2-0600-RO 1105
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N123J2-0600-RO 1105 |
| ANSI Code | N123J2-0600-RO 1105 |
| Catalog Number | 5736817 |
| Corner Radius | 0.1181 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.1102 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1712 in |
| UPC 11 | 69826234948 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RO |
| Insert Size | J2 |
| Insert Style | N123x2-RO |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Rake | Positive |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 6 mm w cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 2 edges |
| 0 deg lead |
| V or rail clamp with screw mounting |
| 0.15 - 0.23 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size |
| ANSI Code: N123J2-0600-RO 1105 |
| ISO Code: N123J2-0600-RO 1105 |
