Sandvik Coromant

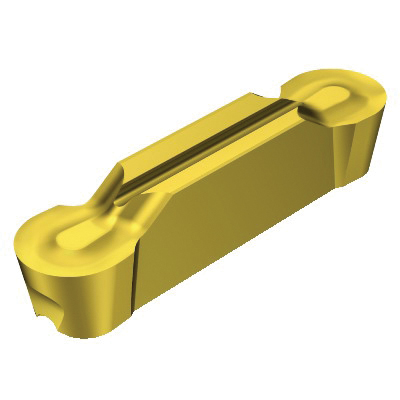

Sandvik Coromant 5736327 CoroCut® 1-2, N123J2-0600-AM 1005, N123x2-AM Insert, Carbide, 0.1102 in Max Depth of Cut, N
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5736327 CoroCut® 1-2, N123J2-0600-AM 1005, N123x2-AM Insert, Carbide, 0.1102 in Max Depth of Cut, N
SKU1247475
MFGR #5736327
Your Cost: $64.78/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-AM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, AM Chipbreaker, ANSI Code: N123J2-0600-AM 1005, 0.1181 in Corner Radius, Manufacturer's Grade: 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: N
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-AM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, AM Chipbreaker, ANSI Code: N123J2-0600-AM 1005, 0.1181 in Corner Radius, Manufacturer's Grade: 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: N
Alternate Catalog Number N123J2-0600-AM 1005 ANSI Code N123J2-0600-AM 1005 Catalog Number 5736327 Corner Radius 0.1181 in Country of Origin SE Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 0.2300 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.1102 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1712 in UPC 11 69826234946 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker AM Insert Size J2 Insert Style N123x2-AM Manufacturer's Grade 1005 Material Carbide Material Grade N Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 6 mm w cutting E cutting edge condition Medium operation Concave clamping -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.02 mm corner radius lower tolerance 0.02 mm corner radius upper tolerance 90 deg ramping 2 edges 0 deg lead Corocut® insert mounting 0.16 - 0.24 mm/r cutting feed 7 insert mounting style code J insert seat size ANSI Code: N123J2-0600-AM 1005 ISO Code: N123J2-0600-AM 1005
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123J2-0600-AM 1005 |
| ANSI Code | N123J2-0600-AM 1005 |
| Catalog Number | 5736327 |
| Corner Radius | 0.1181 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.1102 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1712 in |
| UPC 11 | 69826234946 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | AM |
| Insert Size | J2 |
| Insert Style | N123x2-AM |
| Manufacturer's Grade | 1005 |
| Material | Carbide |
| Material Grade | N |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 6 mm w cutting |
| E cutting edge condition |
| Medium operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 90 deg ramping |
| 2 edges |
| 0 deg lead |
| Corocut® insert mounting |
| 0.16 - 0.24 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size |
| ANSI Code: N123J2-0600-AM 1005 |
| ISO Code: N123J2-0600-AM 1005 |
