Sandvik Coromant 5736249 CoroCut® 1-2, N123J1-0600-RM 1125, N123x1-RM Insert, Carbide, 0.1102 in Max Depth of Cut, K/M/P/S

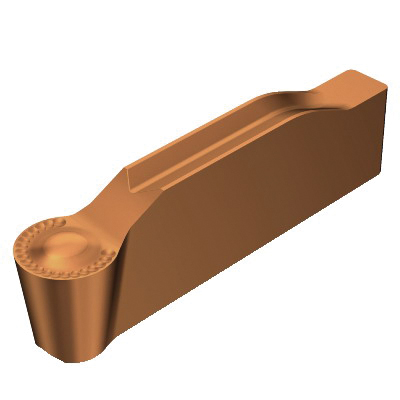

Custom_Product_Images_Illustration
Sandvik Coromant 5736249 CoroCut® 1-2, N123J1-0600-RM 1125, N123x1-RM Insert, Carbide, 0.1102 in Max Depth of Cut, K/M/P/S
SKU1247435
MFGR #5736249
Your Cost: $34.65/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RM Chipbreaker, ANSI Code: N123J1-0600-RM 1125, 0.1181 in Corner Radius, Manufacturer's Grade: 1125, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RM Chipbreaker, ANSI Code: N123J1-0600-RM 1125, 0.1181 in Corner Radius, Manufacturer's Grade: 1125, Positive Rake, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Alternate Catalog Number N123J1-0600-RM 1125 ANSI Code N123J1-0600-RM 1125 Catalog Number 5736249 Corner Radius 0.1181 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.2200 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.1102 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1712 in UPC 11 69826239817 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RM Insert Size J1 Insert Style N123x1-RM Manufacturer's Grade 1125 Material Carbide Material Grade K, M, N, P Rake Positive Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 6 mm w cutting E cutting edge condition Medium operation Concave clamping 0 mm W cutting lower tolerance 0.1 mm W cutting upper tolerance -0.10 mm corner radius lower tolerance 0.10 mm corner radius upper tolerance 90 deg ramping 1 edge 0 deg lead V or rail clamp with screw mounting 0.15 - 0.28 mm/r cutting feed 7 insert mounting style code J insert seat size ANSI Code: N123J1-0600-RM 1125 ISO Code: N123J1-0600-RM 1125
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123J1-0600-RM 1125 |
| ANSI Code | N123J1-0600-RM 1125 |
| Catalog Number | 5736249 |
| Corner Radius | 0.1181 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.1102 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1712 in |
| UPC 11 | 69826239817 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RM |
| Insert Size | J1 |
| Insert Style | N123x1-RM |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | K, M, N, P |
| Rake | Positive |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 6 mm w cutting |
| E cutting edge condition |
| Medium operation |
| Concave clamping |
| 0 mm W cutting lower tolerance |
| 0.1 mm W cutting upper tolerance |
| -0.10 mm corner radius lower tolerance |
| 0.10 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0 deg lead |
| V or rail clamp with screw mounting |
| 0.15 - 0.28 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size |
| ANSI Code: N123J1-0600-RM 1125 |
| ISO Code: N123J1-0600-RM 1125 |
