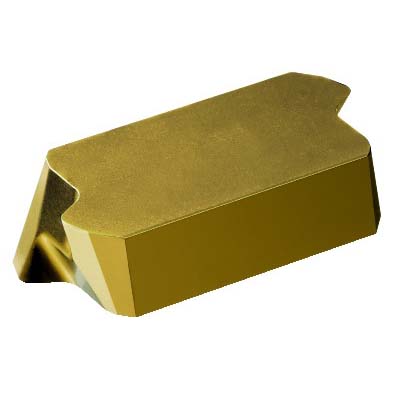

Sandvik Coromant 5735059 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 235, L-Rectangle, LNCX Insert, Carbide, 235, LNCX 18 06 AZ R-11 235
LNCX Milling Inserts
1254297
MFG #: 5735059
Sandvik Coromant
38.60000
/ ea
Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: 235, ANSI Code: LNCX 18 06 AZ R-11 235, ISO Code: LNCX 18 06 AZ R-11 235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
- Features
| Flat surface clamping interface |
| 0 deg clearance |
| 12 mm D cutting |
| 2 mm L wiper edge |
| 125 mm wiper edge radius |
| 90 deg included |
| 44 deg major cutting edge |
| 18.77 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
