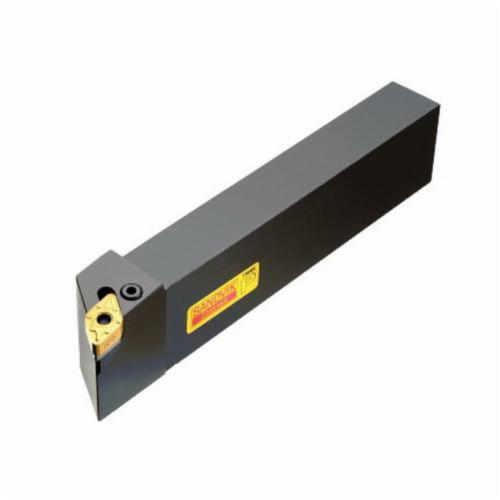

Sandvik Coromant 5734923 T-Max P Shank Tool, R/L171.35 Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5734923 T-Max P Shank Tool, R/L171.35 Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert
SKU1236163
MFGR #5734923
Your Cost: $249.72/ea
Sandvik Coromant Shank Tool, Series: T-Max P, R/L171.35 Tool Holder, 7.874 in Overall Length, Rectangle Shank, 1.5748 in H x 0.9842 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: L171.35-4025-15, ISO Code: L171.35-4025-15, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, R/L171.35 Tool Holder, 7.874 in Overall Length, Rectangle Shank, 1.5748 in H x 0.9842 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: L171.35-4025-15, ISO Code: L171.35-4025-15, -6 deg Rake, Steel
Alternate Catalog Number L171.35-4025-15 ANSI Code L171.35-4025-15 Catalog Number 5734923 Country of Origin IN Gross Weight Per Pack 3.5300 lb Insert Seat Size 1/2 ISO Code L171.35-4025-15 Item Group 210 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826266529 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Lead Angle -3 deg Overall Length 7.874 in Rake -6 deg Shank Size 1.5748 in H x 0.9842 in W Tool Holder Style R/L171.35 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit -7 deg inclination 93 deg cutting edge 27 deg maximum ramping 20 life cycle state 38 mm maximum overhang 5 Nm torque 28.7 mm W functional Lever hole clamping D - 55 deg diamond insert ANSI Code: L171.35-4025-15 ISO Code: L171.35-4025-15
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | L171.35-4025-15 |
| ANSI Code | L171.35-4025-15 |
| Catalog Number | 5734923 |
| Country of Origin | IN |
| Gross Weight Per Pack | 3.5300 lb |
| Insert Seat Size | 1/2 |
| ISO Code | L171.35-4025-15 |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826266529 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 7.874 in |
| Rake | -6 deg |
| Shank Size | 1.5748 in H x 0.9842 in W |
| Tool Holder Style | R/L171.35 |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -7 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 38 mm maximum overhang |
| 5 Nm torque |
| 28.7 mm W functional |
| Lever hole clamping |
| D - 55 deg diamond insert |
| ANSI Code: L171.35-4025-15 |
| ISO Code: L171.35-4025-15 |
