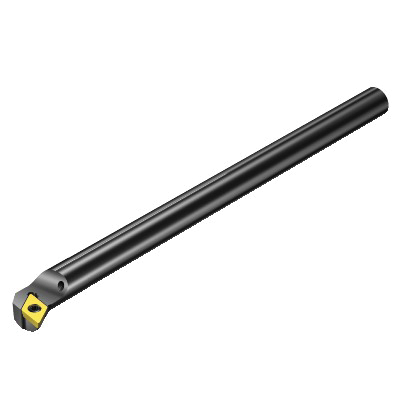

Sandvik Coromant 5734206 CoroTurn® 111 Boring Bar, 0.559 in Min, 6 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5734206 CoroTurn® 111 Boring Bar, 0.559 in Min, 6 in OAL, Right Hand
SKU281689
MFGR #5734206
Your Cost: $569.12/ea
Sandvik Coromant Boring Bar, Series: CoroTurn® 111, 0.559 in Minimum Bore Dia, 6 in Overall Length, 3/8 in Shank Dia, Right Hand Cutting, Insert Compatibility: DPMT 07 02 04, D-55 deg Diamond Insert, Carbide
Sandvik Coromant Boring Bar, Series: CoroTurn® 111, 0.559 in Minimum Bore Dia, 6 in Overall Length, 3/8 in Shank Dia, Right Hand Cutting, Insert Compatibility: DPMT 07 02 04, D-55 deg Diamond Insert, Carbide
Alternate Catalog Number E06M-SDUPR 2-ER Catalog Number 5734206 Country of Origin US Cutting Direction Right Hand Gross Weight Per Pack 0.2900 lb Insert Screw 152.4 mm Insert Thickness CoroTurn® 111 Item Group 480 Maximum Bore Diameter D-55 deg Diamond Overall Length 6 in Series CoroTurn® 111 Shank Type 5763201 Insert Screw, 5764137 Screwdriver and 5764144 Key UPC 11 69826210929 UPC 12 69826210929 Width Offset 9.525 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility DPMT 07 02 04 Insert Shape D-55 deg Diamond Material Carbide Maximum Bore Depth CoroTurn® 111 Minimum Bore Diameter 0.559 in Shank Diameter 3/8 in Type 152.4 mm 20 life cycle state Cylindrical shank adaptive interface without clamping features 0 deg body at machine side and workpiece side 9.525 mm Dia body Axial concentric coolant entry 10 bar coolant 40 - 60 insert screw clamping interface Axial inclined coolant exit 4 deg orthogonal rake 93 deg cutting edge -2 deg inclination 152.4 mm L functional 22.5044 - 57.15 mm overhang -3 deg lead 27 deg maximum ramping 0.9 Nm torque E..SDUPR/L -ER style 8.382 mm W functional 3.6195 mm W usable ANSI Code: E06M-SDUPR 2-ER
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | E06M-SDUPR 2-ER |
| Catalog Number | 5734206 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.2900 lb |
| Insert Screw | 152.4 mm |
| Insert Thickness | CoroTurn® 111 |
| Item Group | 480 |
| Maximum Bore Diameter | D-55 deg Diamond |
| Overall Length | 6 in |
| Series | CoroTurn® 111 |
| Shank Type | 5763201 Insert Screw, 5764137 Screwdriver and 5764144 Key |
| UPC 11 | 69826210929 |
| UPC 12 | 69826210929 |
| Width Offset | 9.525 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | DPMT 07 02 04 |
| Insert Shape | D-55 deg Diamond |
| Material | Carbide |
| Maximum Bore Depth | CoroTurn® 111 |
| Minimum Bore Diameter | 0.559 in |
| Shank Diameter | 3/8 in |
| Type | 152.4 mm |
| 20 life cycle state |
| Cylindrical shank adaptive interface without clamping features |
| 0 deg body at machine side and workpiece side |
| 9.525 mm Dia body |
| Axial concentric coolant entry |
| 10 bar coolant |
| 40 - 60 insert screw clamping interface |
| Axial inclined coolant exit |
| 4 deg orthogonal rake |
| 93 deg cutting edge |
| -2 deg inclination |
| 152.4 mm L functional |
| 22.5044 - 57.15 mm overhang |
| -3 deg lead |
| 27 deg maximum ramping |
| 0.9 Nm torque |
| E..SDUPR/L -ER style |
| 8.382 mm W functional |
| 3.6195 mm W usable |
| ANSI Code: E06M-SDUPR 2-ER |
