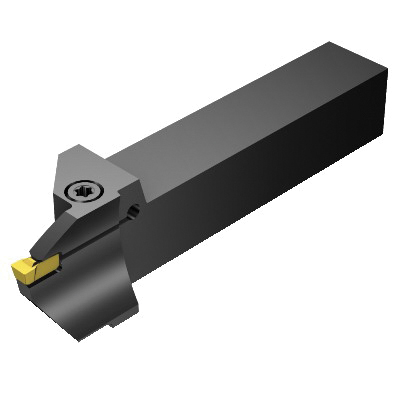

Sandvik Coromant 5733939 T-Max® Q-Cut, Left Hand, N151.3-300-25- 7G Insert, 25 Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5733939 T-Max® Q-Cut, Left Hand, N151.3-300-25- 7G Insert, 25 Insert Seat
SKU1253263
MFGR #5733939
$/ea
Sandvik Coromant Shank Tool, Series: T-Max® Q-Cut, Insert Compatibility: N151.3-300-25- 7G, LF151.37-16-024B25, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, 25 Insert Seat, Left Hand Cutting, 0.945 in ID x 1.1812 to 1.3779 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: T-Max® Q-Cut, Insert Compatibility: N151.3-300-25- 7G, LF151.37-16-024B25, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, 25 Insert Seat, Left Hand Cutting, 0.945 in ID x 1.1812 to 1.3779 in OD Groove Width, Steel
Alternate Catalog Number LF151.37-16-024B25 Catalog Number 5733939 Country of Origin SE Finish External Geometry LF151.37-16-024B25 Gross Weight Per Pack 1.6200 lb Head Length T-Max® Q-Cut Inscribed Circle 1.039 Item Group 480 Material Steel Maximum Workpiece Diameter 25 Minimum Hole Diameter 0.945 Series T-Max® Q-Cut Toolholder Type LF151.37 UPC 11 69826200342 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type T-Max® Q-Cut Cutting Direction Left Hand Groove Width 0.945 in ID x 1.1812 to 1.3779 in OD Insert Compatibility N151.3-300-25- 7G Insert Seat Size 25 Overall Length 6 in Screw Type 1 in H x 1 in W Shank Size 1 in H x 1 in W Shank Type Rectangular Type 152.4 mm 0 deg body workpiece side 20 life cycle state 8.7122 mm D maximum cutting Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 37.7 mm minimum overhang 24.8906 mm width to cutting item reference point 2.4 Nm torque 2 axial groove support direction 25.4 mm W shank 26.3906 mm W functiona ANSI Code: LF151.37-16-024B25 ISO Code: LF151.37-16-024B25
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF151.37-16-024B25 |
| Catalog Number | 5733939 |
| Country of Origin | SE |
| Finish | External |
| Geometry | LF151.37-16-024B25 |
| Gross Weight Per Pack | 1.6200 lb |
| Head Length | T-Max® Q-Cut |
| Inscribed Circle | 1.039 |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 25 |
| Minimum Hole Diameter | 0.945 |
| Series | T-Max® Q-Cut |
| Toolholder Type | LF151.37 |
| UPC 11 | 69826200342 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | T-Max® Q-Cut |
| Cutting Direction | Left Hand |
| Groove Width | 0.945 in ID x 1.1812 to 1.3779 in OD |
| Insert Compatibility | N151.3-300-25- 7G |
| Insert Seat Size | 25 |
| Overall Length | 6 in |
| Screw Type | 1 in H x 1 in W |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Type | 152.4 mm |
| 0 deg body workpiece side |
| 20 life cycle state |
| 8.7122 mm D maximum cutting |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 37.7 mm minimum overhang |
| 24.8906 mm width to cutting item reference point |
| 2.4 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 26.3906 mm W functiona |
| ANSI Code: LF151.37-16-024B25 |
| ISO Code: LF151.37-16-024B25 |
