Sandvik Coromant

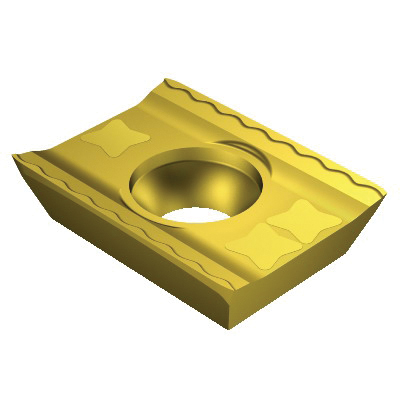

Sandvik Coromant 5733675 T-Max® Long Edge Milling Insert, LDHT 19 04 00-ML 1025, L-Rectangle, LDHT Insert, Carbide, 1025, LDHT 19 04 00-ML 1025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5733675 T-Max® Long Edge Milling Insert, LDHT 19 04 00-ML 1025, L-Rectangle, LDHT Insert, Carbide, 1025, LDHT 19 04 00-ML 1025
SKU1253395
MFGR #5733675
Your Cost: $43.29/ea
List: Sandvik Coromant Milling Insert, Long Edge, Series: T-Max®, LDHT Insert, L-Rectangle, 0.542 in Inscribed Circle, 0.187 in Thickness, 0.542 in Width, ML Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: LDHT 19 04 00-ML 1025, ISO Code: LDHT 19 04 00-ML 1025, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/N/P/S
Sandvik Coromant Milling Insert, Long Edge, Series: T-Max®, LDHT Insert, L-Rectangle, 0.542 in Inscribed Circle, 0.187 in Thickness, 0.542 in Width, ML Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: LDHT 19 04 00-ML 1025, ISO Code: LDHT 19 04 00-ML 1025, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/N/P/S
Alternate Catalog Number LDHT 19 04 00-ML 1025 ANSI Code LDHT 19 04 00-ML 1025 Catalog Number 5733675 Corner Radius 0.0078 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2244 in Included Angle 4.7498 mm ISO Code LDHT 19 04 00-ML 1025 Item Group 350 Lead Angle 90 deg Length Long Edge Relief Angle 13.7668 mm Series T-Max® Thickness 0.187 in Type Long Edge UPC 11 69826213556 Width 0.542 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ML Inscribed Circle 0.542 in Insert Size Positive Insert Style LDHT Manufacturer's Grade 1025 Material Carbide Material Grade H/M/N/P/S Maximum Depth of Cut L - Rectangle Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 90 deg included 90 deg major cutting edge 19.1 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LDHT 19 04 00-ML 1025 |
| ANSI Code | LDHT 19 04 00-ML 1025 |
| Catalog Number | 5733675 |
| Corner Radius | 0.0078 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| Included Angle | 4.7498 mm |
| ISO Code | LDHT 19 04 00-ML 1025 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | Long Edge |
| Relief Angle | 13.7668 mm |
| Series | T-Max® |
| Thickness | 0.187 in |
| Type | Long Edge |
| UPC 11 | 69826213556 |
| Width | 0.542 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ML |
| Inscribed Circle | 0.542 in |
| Insert Size | Positive |
| Insert Style | LDHT |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | H/M/N/P/S |
| Maximum Depth of Cut | L - Rectangle |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 90 deg included |
| 90 deg major cutting edge |
| 19.1 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
