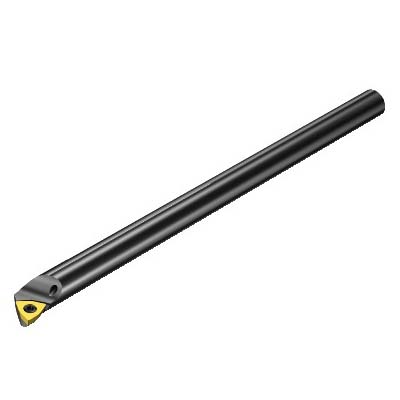

Sandvik Coromant 5731604 CoroTurn® 111 Boring Bar, 0.2598 in Min, 4 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5731604 CoroTurn® 111 Boring Bar, 0.2598 in Min, 4 in OAL, Right Hand
SKU80708
MFGR #5731604
Your Cost: $378.13/ea
Sandvik Coromant Boring Bar, Series: CoroTurn® 111, 0.2598 in Minimum Bore Dia, 4 in Overall Length, 0.1874 in Shank Dia, Right Hand Cutting, Insert Compatibility: WPMT 02 01 02, Trigon Insert, Carbide
Sandvik Coromant Boring Bar, Series: CoroTurn® 111, 0.2598 in Minimum Bore Dia, 4 in Overall Length, 0.1874 in Shank Dia, Right Hand Cutting, Insert Compatibility: WPMT 02 01 02, Trigon Insert, Carbide
Alternate Catalog Number E03H-SWLPR 1.2-R Catalog Number 5731604 Country of Origin US Cutting Direction Right Hand Gross Weight Per Pack 0.2200 lb Insert Screw 101.6 mm Insert Thickness CoroTurn® 111 Item Group 480 Maximum Bore Diameter 6.6 mm Overall Length 4 in Series CoroTurn® 111 Shank Type Right Hand UPC 11 69826220328 UPC 12 69826220328 Width Offset 4.7625 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility WPMT 02 01 02 Insert Shape Trigon Material Carbide Maximum Bore Depth WPMT 02 01 02 Minimum Bore Diameter 0.2598 in Shank Diameter 0.1874 in Type W-Trigon 20 life cycle state Cylindrical shank adaptive interface without clamping features 0 deg body at machine side and workpiece side 4.7625 mm Dia body Axial concentric coolant entry 10 bar coolant 40 - 60 insert screw clamping interface Axial inclined coolant exit 0 deg orthogonal rake 95 deg cutting edge -13 deg inclination 101.6 mm L functional 10.922 - 28.575 mm overhang -5 deg lead 0 deg maximum ramping 0.6 Nm torque E..SWLPR/L -R style 3.2004 mm W functiona ANSI Code: E03H-SWLPR 1.2-R ISO Code: E03H-SWLPR 1.2-R
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | E03H-SWLPR 1.2-R |
| Catalog Number | 5731604 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.2200 lb |
| Insert Screw | 101.6 mm |
| Insert Thickness | CoroTurn® 111 |
| Item Group | 480 |
| Maximum Bore Diameter | 6.6 mm |
| Overall Length | 4 in |
| Series | CoroTurn® 111 |
| Shank Type | Right Hand |
| UPC 11 | 69826220328 |
| UPC 12 | 69826220328 |
| Width Offset | 4.7625 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | WPMT 02 01 02 |
| Insert Shape | Trigon |
| Material | Carbide |
| Maximum Bore Depth | WPMT 02 01 02 |
| Minimum Bore Diameter | 0.2598 in |
| Shank Diameter | 0.1874 in |
| Type | W-Trigon |
| 20 life cycle state |
| Cylindrical shank adaptive interface without clamping features |
| 0 deg body at machine side and workpiece side |
| 4.7625 mm Dia body |
| Axial concentric coolant entry |
| 10 bar coolant |
| 40 - 60 insert screw clamping interface |
| Axial inclined coolant exit |
| 0 deg orthogonal rake |
| 95 deg cutting edge |
| -13 deg inclination |
| 101.6 mm L functional |
| 10.922 - 28.575 mm overhang |
| -5 deg lead |
| 0 deg maximum ramping |
| 0.6 Nm torque |
| E..SWLPR/L -R style |
| 3.2004 mm W functiona |
| ANSI Code: E03H-SWLPR 1.2-R |
| ISO Code: E03H-SWLPR 1.2-R |
