Sandvik Coromant

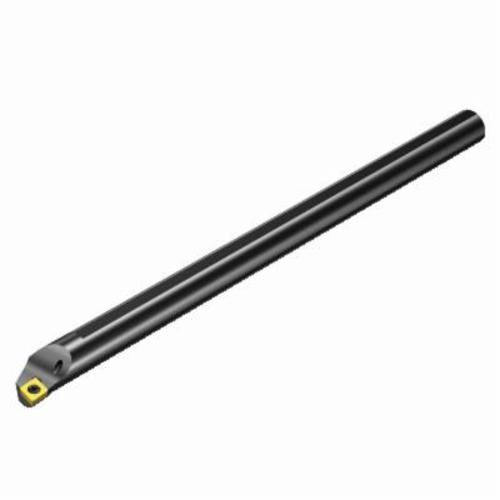

Sandvik Coromant 5731583 CoroTurn® 107 Indexable Boring Bar, 0.7716 in Min, 8 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731583 CoroTurn® 107 Indexable Boring Bar, 0.7716 in Min, 8 in OAL, Right Hand
SKU312418
MFGR #5731583
Your Cost: $970.48/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.7716 in Minimum Bore Dia, 3-3/4 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN), C-80 deg Diamond Insert, 0.4059 in Width Offset, Carbide
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.7716 in Minimum Bore Dia, 3-3/4 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN), C-80 deg Diamond Insert, 0.4059 in Width Offset, Carbide
Alternate Catalog Number E10R-SCLCR 2 Catalog Number 5731583 Country of Origin US Cutting Direction Right Hand Finish Indexable Gross Weight Per Pack 1.2800 lb Insert Screw 203.2 mm Insert Thickness CoroTurn® 107 Item Group 210 Maximum Bore Diameter 95.25 mm Overall Length 8 in Series CoroTurn® 107 Shank Type Cylindrical with 3-Flats UPC 11 69826234833 UPC 12 69826234833 Width Offset 0.4059 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN) Insert Shape C-80 deg Diamond Material Carbide Maximum Bore Depth 3-3/4 in Minimum Bore Diameter 0.7716 in Shank Diameter 5/8 in Type Indexable 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 15.48 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -5.3397 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: E10R-SCLCR 2 ISO Code: E10R-SCLCR 2
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | E10R-SCLCR 2 |
| Catalog Number | 5731583 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 1.2800 lb |
| Insert Screw | 203.2 mm |
| Insert Thickness | CoroTurn® 107 |
| Item Group | 210 |
| Maximum Bore Diameter | 95.25 mm |
| Overall Length | 8 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical with 3-Flats |
| UPC 11 | 69826234833 |
| UPC 12 | 69826234833 |
| Width Offset | 0.4059 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN) |
| Insert Shape | C-80 deg Diamond |
| Material | Carbide |
| Maximum Bore Depth | 3-3/4 in |
| Minimum Bore Diameter | 0.7716 in |
| Shank Diameter | 5/8 in |
| Type | Indexable |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 15.48 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -5.3397 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: E10R-SCLCR 2 |
| ISO Code: E10R-SCLCR 2 |
