Sandvik Coromant

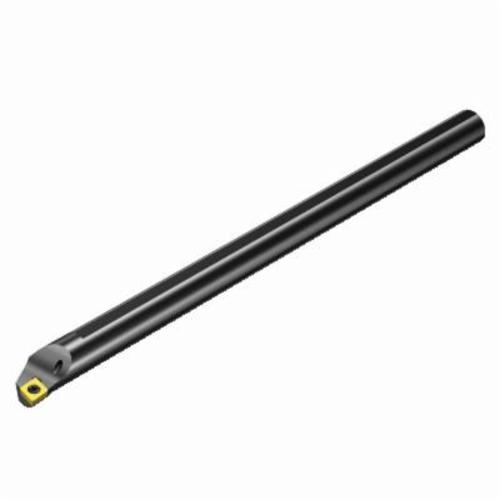

Sandvik Coromant 5731465 CoroTurn® 107 Indexable Boring Bar, 1.2007 in Min, 12 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731465 CoroTurn® 107 Indexable Boring Bar, 1.2007 in Min, 12 in OAL, Left Hand
SKU428795
MFGR #5731465
Your Cost: $1,530.57/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2007 in Minimum Bore Dia, 6 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CCMT 09 T3 08 (MIIDM), CCMT 3(2.5)2 (MIIDN), C-80 deg Diamond Insert, 3/8 in Insert Inscribed Circle, 0.156 in Insert Thickness, 0.64 in Width Offset, Carbide
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2007 in Minimum Bore Dia, 6 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CCMT 09 T3 08 (MIIDM), CCMT 3(2.5)2 (MIIDN), C-80 deg Diamond Insert, 3/8 in Insert Inscribed Circle, 0.156 in Insert Thickness, 0.64 in Width Offset, Carbide
Alternate Catalog Number E16T-SCLCL 3 Catalog Number 5731465 Country of Origin US Gross Weight Per Pack 3.8600 lb Inscribed Circle 3/8 Insert Screw 5763169 Insert Thickness 0.156 in Item Group 210 Overall Length 12 in Series CoroTurn® 107 Shank Type Cylindrical with 3-Flats Toolholder Style E..SCLCL Toolholder Type E..SCLCL UPC 11 69826234840 UPC 12 69826234840 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility CCMT 09 T3 08 Insert Shape 80 deg Diamond Material Carbide Maximum Bore Depth 6 in Minimum Bore Diameter 1.201 in Shank Diameter 1 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 25.00 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -3.8342 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 3 Nm torque 40 - 60 deg insert screw clamping 3/8 in insert seat ANSI Code: E16T-SCLCL 3 ISO Code: E16T-SCLCL 3
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | E16T-SCLCL 3 |
| Catalog Number | 5731465 |
| Country of Origin | US |
| Gross Weight Per Pack | 3.8600 lb |
| Inscribed Circle | 3/8 |
| Insert Screw | 5763169 |
| Insert Thickness | 0.156 in |
| Item Group | 210 |
| Overall Length | 12 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | E..SCLCL |
| Toolholder Type | E..SCLCL |
| UPC 11 | 69826234840 |
| UPC 12 | 69826234840 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | CCMT 09 T3 08 |
| Insert Shape | 80 deg Diamond |
| Material | Carbide |
| Maximum Bore Depth | 6 in |
| Minimum Bore Diameter | 1.201 in |
| Shank Diameter | 1 in |
| Through Coolant | Yes |
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 25.00 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -3.8342 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 3 Nm torque |
| 40 - 60 deg insert screw clamping |
| 3/8 in insert seat |
| ANSI Code: E16T-SCLCL 3 |
| ISO Code: E16T-SCLCL 3 |
