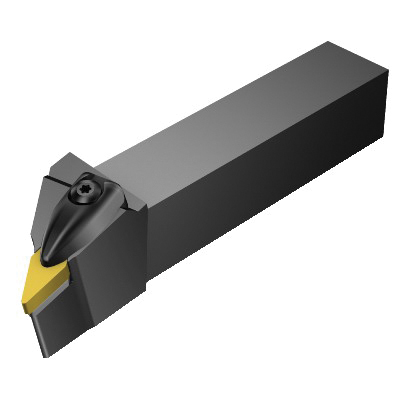

Sandvik Coromant 5731459 T-Max P Turning Shank Tool, DVJNR/L Tool Holder, VNMG 16 04 08 Insert, -3 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
409451
MFG #: 5731459
Sandvik Coromant
183.33000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DVJNR/L Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: VNMG 16 04 08, 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: DVJNR 2525M 16, ISO Code: DVJNR 2525M 16, -4 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -13 deg inclination |
| 46.6 mm maximum overhang |
| 44 deg ramping |
| V insert shape |
| 3 Nm torque |
| 25 mm H functional |
| 32 mm W functional |
| 150 mm L functional |
