Sandvik Coromant

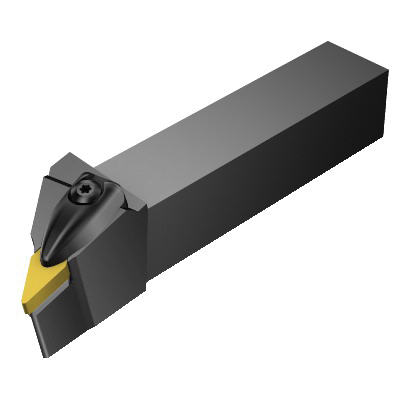

Sandvik Coromant 5731455 T-Max P Turning Shank Tool, DVJNR/L Tool Holder, VNMG 16 04 08 Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731455 T-Max P Turning Shank Tool, DVJNR/L Tool Holder, VNMG 16 04 08 Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU189614
MFGR #5731455
Your Cost: $320.05/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DVJNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: VNMG 16 04 08, 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: DVJNR 20 3D, ISO Code: DVJNR 20 3D, -4 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DVJNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: VNMG 16 04 08, 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: DVJNR 20 3D, ISO Code: DVJNR 20 3D, -4 deg Rake, Steel
Alternate Catalog Number DVJNR 20 3D ANSI Code DVJNR 20 3D Back of Bar to Cutting Edge -3 deg Catalog Number 5731455 Country of Origin SE Finish DVJNR/L Gross Weight Per Pack 3.0800 lb Head Length DVJNR 20 3D Inscribed Circle 1-1/4 in H x 1-1/4 in W Insert Seat Size 3/8 ISO Code DVJNR 20 3D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type DVJNR 20 3D UPC 11 69826223902 UPC 12 69826223902 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility VNMG 16 04 08 Lead Angle -3 deg Overall Length 6 in Rake -4 deg Shank Size 1-1/4 in H x 1-1/4 in W Tool Holder Style DVJNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 93 deg cutting edge -13 deg inclination 46.482 mm maximum overhang 44 deg ramping V insert shape 3 Nm torque 31.75 mm H functional 38.1 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DVJNR 20 3D |
| ANSI Code | DVJNR 20 3D |
| Back of Bar to Cutting Edge | -3 deg |
| Catalog Number | 5731455 |
| Country of Origin | SE |
| Finish | DVJNR/L |
| Gross Weight Per Pack | 3.0800 lb |
| Head Length | DVJNR 20 3D |
| Inscribed Circle | 1-1/4 in H x 1-1/4 in W |
| Insert Seat Size | 3/8 |
| ISO Code | DVJNR 20 3D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | DVJNR 20 3D |
| UPC 11 | 69826223902 |
| UPC 12 | 69826223902 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | VNMG 16 04 08 |
| Lead Angle | -3 deg |
| Overall Length | 6 in |
| Rake | -4 deg |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Tool Holder Style | DVJNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -13 deg inclination |
| 46.482 mm maximum overhang |
| 44 deg ramping |
| V insert shape |
| 3 Nm torque |
| 31.75 mm H functional |
| 38.1 mm W functional |
| 152.4 mm L functional |
