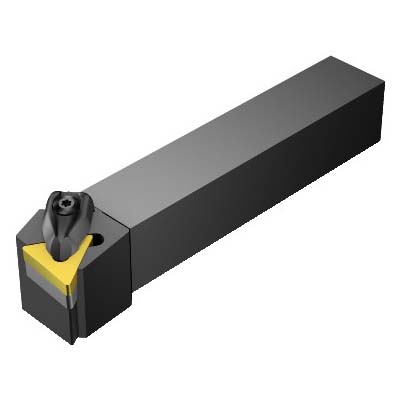

Sandvik Coromant 5731436 T-Max P Turning Shank Tool, DTFNR/L Tool Holder, TNMG 22 04 08 Insert, -1 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5731436 T-Max P Turning Shank Tool, DTFNR/L Tool Holder, TNMG 22 04 08 Insert, -1 deg Lead, Rectangle Shank, Right Hand
SKU413990
MFGR #5731436
Your Cost: $206.48/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DTFNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: TNMG 22 04 08, 1/2 Insert Seat, Right Hand Cutting, -1 deg Lead Angle, ANSI Code: DTFNR 16 4D, ISO Code: DTFNR 16 4D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DTFNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: TNMG 22 04 08, 1/2 Insert Seat, Right Hand Cutting, -1 deg Lead Angle, ANSI Code: DTFNR 16 4D, ISO Code: DTFNR 16 4D, -6 deg Rake, Steel
Alternate Catalog Number DTFNR 16 4D ANSI Code DTFNR 16 4D Catalog Number 5731436 Country of Origin SE Gross Weight Per Pack 1.8100 lb Insert Seat Size 1/2 ISO Code DTFNR 16 4D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826218985 UPC 12 69826218985 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TNMG 22 04 08 Lead Angle -1 deg Overall Length 6 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DTFNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 91 deg cutting edge -6 deg inclination 31.1912 mm maximum overhang 0 deg ramping T insert shape 3.9 Nm torque 25.4 mm H functional 31.75 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DTFNR 16 4D |
| ANSI Code | DTFNR 16 4D |
| Catalog Number | 5731436 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.8100 lb |
| Insert Seat Size | 1/2 |
| ISO Code | DTFNR 16 4D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826218985 |
| UPC 12 | 69826218985 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TNMG 22 04 08 |
| Lead Angle | -1 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DTFNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 91 deg cutting edge |
| -6 deg inclination |
| 31.1912 mm maximum overhang |
| 0 deg ramping |
| T insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
