Sandvik Coromant

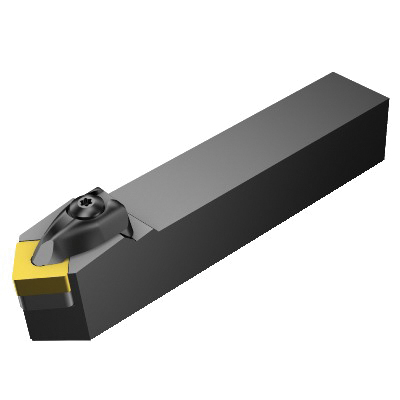

Sandvik Coromant 5731387 T-Max P Turning Shank Tool, DSDNN Tool Holder, SNMG 12 04 08 Insert, 45 deg Lead, Rectangle Shank, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731387 T-Max P Turning Shank Tool, DSDNN Tool Holder, SNMG 12 04 08 Insert, 45 deg Lead, Rectangle Shank, Neutral
SKU80650
MFGR #5731387
Your Cost: $197.45/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DSDNN Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: SNMG 12 04 08, 1/2 Insert Seat, Neutral Cutting, 45 deg Lead Angle, ANSI Code: DSDNN 16 4D, ISO Code: DSDNN 16 4D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DSDNN Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: SNMG 12 04 08, 1/2 Insert Seat, Neutral Cutting, 45 deg Lead Angle, ANSI Code: DSDNN 16 4D, ISO Code: DSDNN 16 4D, -6 deg Rake, Steel
Alternate Catalog Number DSDNN 16 4D ANSI Code DSDNN 16 4D Catalog Number 5731387 Country of Origin SE Gross Weight Per Pack 1.7100 lb Insert Seat Size 1/2 ISO Code DSDNN 16 4D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826218888 UPC 12 69826218888 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Neutral Insert Compatibility SNMG 12 04 08 Lead Angle 45 deg Overall Length 6 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DSDNN 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 45 deg cutting edge -6 deg inclination 36.83 mm maximum overhang 40 deg ramping S insert shape 3.9 Nm torque 25.4 mm H functional 13.0048 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DSDNN 16 4D |
| ANSI Code | DSDNN 16 4D |
| Catalog Number | 5731387 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.7100 lb |
| Insert Seat Size | 1/2 |
| ISO Code | DSDNN 16 4D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826218888 |
| UPC 12 | 69826218888 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Neutral |
| Insert Compatibility | SNMG 12 04 08 |
| Lead Angle | 45 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DSDNN |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 45 deg cutting edge |
| -6 deg inclination |
| 36.83 mm maximum overhang |
| 40 deg ramping |
| S insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 13.0048 mm W functional |
| 152.4 mm L functional |
