Sandvik Coromant

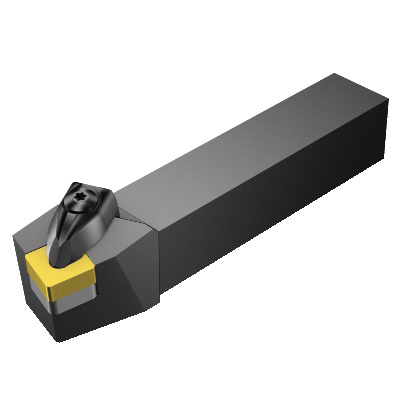

Sandvik Coromant 5731382 T-Max P Turning Shank Tool, DSBNR/L Tool Holder, SNMG 25 07 24 Insert, 15 deg Lead, Rectangle Shank
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731382 T-Max P Turning Shank Tool, DSBNR/L Tool Holder, SNMG 25 07 24 Insert, 15 deg Lead, Rectangle Shank
SKU1105047
MFGR #5731382
Your Cost: $354.90/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DSBNR/L Tool Holder, 9.8425 in Overall Length, Rectangle Shank, 1.5748 in H x 1.5748 in W Shank, Insert Compatibility: SNMG 25 07 24, 1 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DSBNR 4040S 25, ISO Code: DSBNR 4040S 25, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DSBNR/L Tool Holder, 9.8425 in Overall Length, Rectangle Shank, 1.5748 in H x 1.5748 in W Shank, Insert Compatibility: SNMG 25 07 24, 1 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DSBNR 4040S 25, ISO Code: DSBNR 4040S 25, -6 deg Rake, Steel
Alternate Catalog Number DSBNR 4040S 25 ANSI Code DSBNR 4040S 25 Catalog Number 5731382 Country of Origin IN Gross Weight Per Pack 7.0300 lb Insert Seat Size 1 ISO Code DSBNR 4040S 25 Item Group 410 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826223351 UPC 12 69826223351 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility SNMG 25 07 24 Lead Angle 15 deg Overall Length 9.8425 in Rake -6 deg Shank Size 1.5748 in H x 1.5748 in W Tool Holder Style DSBNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 75 deg cutting edge -6 deg inclination 56.6 mm maximum overhang 10 deg ramping S insert shape 9.5 Nm torque 40 mm H functional 35 mm W functional 250 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DSBNR 4040S 25 |
| ANSI Code | DSBNR 4040S 25 |
| Catalog Number | 5731382 |
| Country of Origin | IN |
| Gross Weight Per Pack | 7.0300 lb |
| Insert Seat Size | 1 |
| ISO Code | DSBNR 4040S 25 |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826223351 |
| UPC 12 | 69826223351 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | SNMG 25 07 24 |
| Lead Angle | 15 deg |
| Overall Length | 9.8425 in |
| Rake | -6 deg |
| Shank Size | 1.5748 in H x 1.5748 in W |
| Tool Holder Style | DSBNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 56.6 mm maximum overhang |
| 10 deg ramping |
| S insert shape |
| 9.5 Nm torque |
| 40 mm H functional |
| 35 mm W functional |
| 250 mm L functional |
