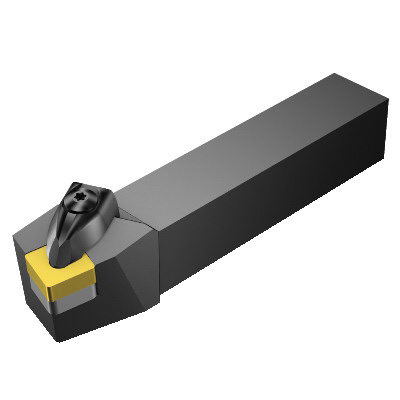

Sandvik Coromant 5731379 T-Max P Turning Shank Tool, DSBNR/L Tool Holder, SNMG 19 06 12 Insert, 15 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
1118559
MFG #: 5731379
Sandvik Coromant
171.00000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DSBNR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 1.2598 in W Shank, Insert Compatibility: SNMG 19 06 12, 3/4 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DSBNR 3232P 19, ISO Code: DSBNR 3232P 19, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 46.4 mm maximum overhang |
| 10 deg ramping |
| S insert shape |
| 6.4 Nm torque |
| 32 mm H functional |
| 27 mm W functional |
| 170 mm L functional |
