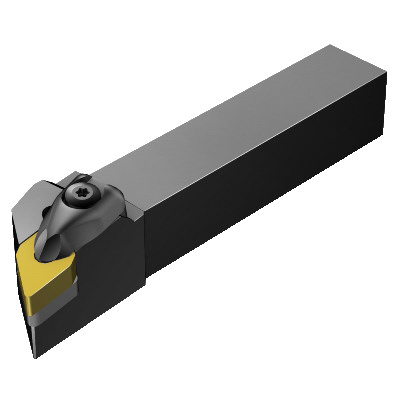

Sandvik Coromant 5731113 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank
Indexable Turning Tool Holders
64281
MFG #: 5731113
Sandvik Coromant
207.08000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNR 20 4D, ISO Code: DDJNR 20 4D, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 39.37 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 31.75 mm H functional |
| 38.1 mm W functional |
| 152.4 mm L functional |
