Sandvik Coromant

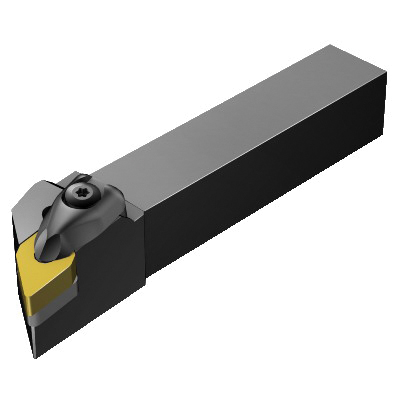

Sandvik Coromant 5731032 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 11 04 08 Insert, -3 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731032 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 11 04 08 Insert, -3 deg Lead, Rectangle Shank, Left Hand
SKU258095
MFGR #5731032
Your Cost: $197.45/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: DNMG 11 04 08, 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNL 16 3D, ISO Code: DDJNL 16 3D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: DNMG 11 04 08, 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNL 16 3D, ISO Code: DDJNL 16 3D, -6 deg Rake, Steel
Alternate Catalog Number DDJNL 16 3D ANSI Code DDJNL 16 3D Back of Bar to Cutting Edge 1 in H x 1 in W Catalog Number 5731032 Country of Origin SE Finish DDJNR/L Gross Weight Per Pack 2.2000 lb Head Length Rectangular Inscribed Circle -6 deg Insert Seat Size 3/8 ISO Code DDJNL 16 3D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type 3/8 in UPC 11 69826204830 UPC 12 69826204830 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility DNMG 11 04 08 Lead Angle -3 deg Overall Length 6 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DDJNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 93 deg cutting edge -7 deg inclination 30.226 mm maximum overhang 27 deg ramping D insert shape 1.7 Nm torque 25.4 mm H functional 31.75 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DDJNL 16 3D |
| ANSI Code | DDJNL 16 3D |
| Back of Bar to Cutting Edge | 1 in H x 1 in W |
| Catalog Number | 5731032 |
| Country of Origin | SE |
| Finish | DDJNR/L |
| Gross Weight Per Pack | 2.2000 lb |
| Head Length | Rectangular |
| Inscribed Circle | -6 deg |
| Insert Seat Size | 3/8 |
| ISO Code | DDJNL 16 3D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | 3/8 in |
| UPC 11 | 69826204830 |
| UPC 12 | 69826204830 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 11 04 08 |
| Lead Angle | -3 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DDJNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 30.226 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 1.7 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
