Sandvik Coromant

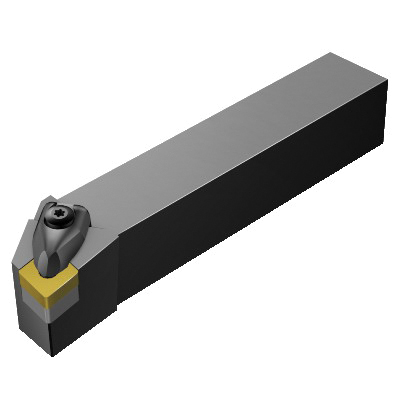

Sandvik Coromant 5730807 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5730807 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Right Hand
SKU79874
MFGR #5730807
Your Cost: $197.45/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 5 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNR 16 4C, ISO Code: DCLNR 16 4C, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 5 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNR 16 4C, ISO Code: DCLNR 16 4C, -6 deg Rake, Steel
Alternate Catalog Number DCLNR 16 4C ANSI Code DCLNR 16 4C Back of Bar to Cutting Edge DCLNR/L Catalog Number 5730807 Country of Origin SE Finish DCLNR/L Gross Weight Per Pack 1.7600 lb Head Length Steel Inscribed Circle 127 mm Insert Seat Size 1/2 ISO Code DCLNR 16 4C Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type DCLNR 16 4C UPC 11 69826204823 UPC 12 69826204823 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 12 04 08 Lead Angle -5 deg Overall Length 5 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DCLNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 95 deg cutting edge -6 deg inclination 32 mm maximum overhang 0 deg ramping C insert shape 3.9 Nm torque 25.4 mm H functional 31.75 mm W functional 127 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCLNR 16 4C |
| ANSI Code | DCLNR 16 4C |
| Back of Bar to Cutting Edge | DCLNR/L |
| Catalog Number | 5730807 |
| Country of Origin | SE |
| Finish | DCLNR/L |
| Gross Weight Per Pack | 1.7600 lb |
| Head Length | Steel |
| Inscribed Circle | 127 mm |
| Insert Seat Size | 1/2 |
| ISO Code | DCLNR 16 4C |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | DCLNR 16 4C |
| UPC 11 | 69826204823 |
| UPC 12 | 69826204823 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 12 04 08 |
| Lead Angle | -5 deg |
| Overall Length | 5 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DCLNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 32 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 127 mm L functional |
