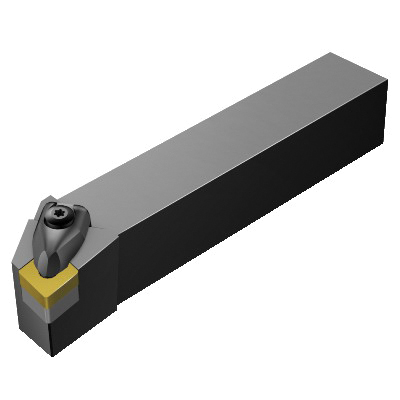

Sandvik Coromant 5730806 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 09 03 08 Insert, -5 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5730806 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 09 03 08 Insert, -5 deg Lead, Rectangle Shank, Right Hand
SKU1228441
MFGR #5730806
$/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 09 03 08, 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNR 16 3D, ISO Code: DCLNR 16 3D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 09 03 08, 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNR 16 3D, ISO Code: DCLNR 16 3D, -6 deg Rake, Steel
Alternate Catalog Number DCLNR 16 3D ANSI Code DCLNR 16 3D Back of Bar to Cutting Edge -6 deg Catalog Number 5730806 Country of Origin SE Finish DCLNR/L Gross Weight Per Pack 0.2200 lb Head Length DCLNR 16 3D Inscribed Circle Steel Insert Seat Size 3/8 ISO Code DCLNR 16 3D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type 3/8 in UPC 11 69826218801 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 09 03 08 Lead Angle -5 deg Overall Length 6 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DCLNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 95 deg cutting edge -6 deg inclination 24.892 mm maximum overhang 0 deg ramping C insert shape 1.7 Nm torque 25.4 mm H functional 31.75 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCLNR 16 3D |
| ANSI Code | DCLNR 16 3D |
| Back of Bar to Cutting Edge | -6 deg |
| Catalog Number | 5730806 |
| Country of Origin | SE |
| Finish | DCLNR/L |
| Gross Weight Per Pack | 0.2200 lb |
| Head Length | DCLNR 16 3D |
| Inscribed Circle | Steel |
| Insert Seat Size | 3/8 |
| ISO Code | DCLNR 16 3D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | 3/8 in |
| UPC 11 | 69826218801 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 09 03 08 |
| Lead Angle | -5 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DCLNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 24.892 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 1.7 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
