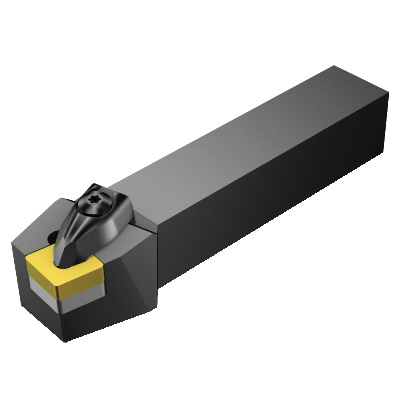

Sandvik Coromant 5730784 T-Max P Turning Shank Tool, DCRNR/L Tool Holder, CNMG 12 04 08 Insert, 15 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5730784 T-Max P Turning Shank Tool, DCRNR/L Tool Holder, CNMG 12 04 08 Insert, 15 deg Lead, Rectangle Shank, Right Hand
SKU318323
MFGR #5730784
Your Cost: $197.45/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCRNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCRNR 16 4DM1, ISO Code: DCRNR 16 4DM1, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCRNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCRNR 16 4DM1, ISO Code: DCRNR 16 4DM1, -6 deg Rake, Steel
Alternate Catalog Number DCRNR 16 4DM1 ANSI Code DCRNR 16 4DM1 Back of Bar to Cutting Edge Rectangular Catalog Number 5730784 Country of Origin SE Finish DCRNR/L Gross Weight Per Pack 1.5800 lb Head Length CNMG 12 04 08 Inscribed Circle DCRNR 16 4DM1 Insert Seat Size 1/2 ISO Code DCRNR 16 4DM1 Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type 152.4 mm UPC 11 69826223839 UPC 12 69826223839 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 12 04 08 Lead Angle 15 deg Overall Length 6 in Rake -6 deg Shank Size 1 in H x 1 in W Tool Holder Style DCRNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 75 deg cutting edge -6 deg inclination 34.29 mm maximum overhang 0 deg ramping C insert shape 3.9 Nm torque 25.4 mm H functional 26.6192 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCRNR 16 4DM1 |
| ANSI Code | DCRNR 16 4DM1 |
| Back of Bar to Cutting Edge | Rectangular |
| Catalog Number | 5730784 |
| Country of Origin | SE |
| Finish | DCRNR/L |
| Gross Weight Per Pack | 1.5800 lb |
| Head Length | CNMG 12 04 08 |
| Inscribed Circle | DCRNR 16 4DM1 |
| Insert Seat Size | 1/2 |
| ISO Code | DCRNR 16 4DM1 |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | 152.4 mm |
| UPC 11 | 69826223839 |
| UPC 12 | 69826223839 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 12 04 08 |
| Lead Angle | 15 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1 in H x 1 in W |
| Tool Holder Style | DCRNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 34.29 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 26.6192 mm W functional |
| 152.4 mm L functional |
