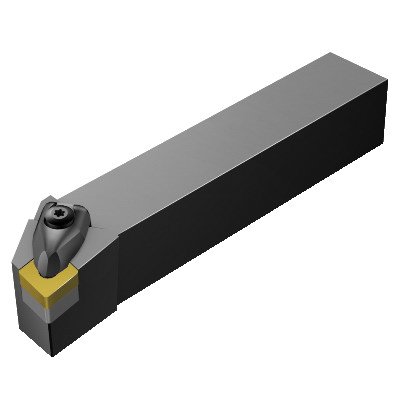

Sandvik Coromant 5730591 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5730591 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Left Hand
SKU79873
MFGR #5730591
Your Cost: $187.13/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNL 12 4B, ISO Code: DCLNL 12 4B, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNL 12 4B, ISO Code: DCLNL 12 4B, -6 deg Rake, Steel
Alternate Catalog Number DCLNL 12 4B ANSI Code DCLNL 12 4B Back of Bar to Cutting Edge T-Max® P Catalog Number 5730591 Country of Origin SE Finish DCLNR/L Gross Weight Per Pack 1.1000 lb Head Length Steel Inscribed Circle DCLNR/L Insert Seat Size 1/2 ISO Code DCLNL 12 4B Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type -6 deg UPC 11 69826204816 UPC 12 69826204816 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility CNMG 12 04 08 Lead Angle -5 deg Overall Length 4-1/2 in Rake -6 deg Shank Size 3/4 in H x 3/4 in W Tool Holder Style DCLNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 95 deg cutting edge -6 deg inclination 32 mm maximum overhang 0 deg ramping C insert shape 3.9 Nm torque 19.05 mm H functional 25.4 mm W functional 114.3 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCLNL 12 4B |
| ANSI Code | DCLNL 12 4B |
| Back of Bar to Cutting Edge | T-Max® P |
| Catalog Number | 5730591 |
| Country of Origin | SE |
| Finish | DCLNR/L |
| Gross Weight Per Pack | 1.1000 lb |
| Head Length | Steel |
| Inscribed Circle | DCLNR/L |
| Insert Seat Size | 1/2 |
| ISO Code | DCLNL 12 4B |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | -6 deg |
| UPC 11 | 69826204816 |
| UPC 12 | 69826204816 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 12 04 08 |
| Lead Angle | -5 deg |
| Overall Length | 4-1/2 in |
| Rake | -6 deg |
| Shank Size | 3/4 in H x 3/4 in W |
| Tool Holder Style | DCLNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 32 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 19.05 mm H functional |
| 25.4 mm W functional |
| 114.3 mm L functional |
