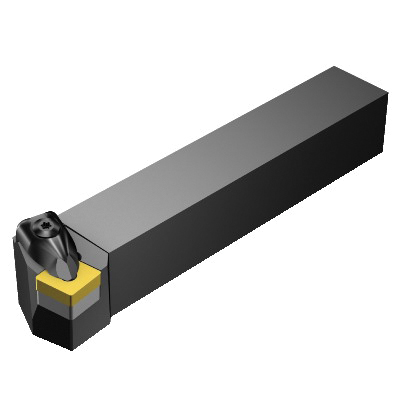

Sandvik Coromant 5730580 T-Max P Turning Shank Tool, DCKNR/L Tool Holder, CNMG 16 06 12 Insert, 15 deg Lead, Rectangle Shank
Custom_Product_Images_Illustration
Sandvik Coromant 5730580 T-Max P Turning Shank Tool, DCKNR/L Tool Holder, CNMG 16 06 12 Insert, 15 deg Lead, Rectangle Shank
SKU417806
MFGR #5730580
Your Cost: $264.56/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCKNR/L Tool Holder, 6.1496 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 16 06 12, 5/8 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCKNR 20 5D, ISO Code: DCKNR 20 5D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCKNR/L Tool Holder, 6.1496 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 16 06 12, 5/8 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCKNR 20 5D, ISO Code: DCKNR 20 5D, -6 deg Rake, Steel
Alternate Catalog Number DCKNR 20 5D ANSI Code DCKNR 20 5D Back of Bar to Cutting Edge Steel Catalog Number 5730580 Country of Origin SE Finish DCKNR/L Gross Weight Per Pack 3.7400 lb Head Length CNMG 16 06 12 Inscribed Circle Rectangular Insert Seat Size 5/8 ISO Code DCKNR 20 5D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type T-Max® P UPC 11 69826218782 UPC 12 69826218782 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 16 06 12 Lead Angle 15 deg Overall Length 6.1496 in Rake -6 deg Shank Size 1-1/4 in H x 1-1/4 in W Tool Holder Style DCKNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 75 deg cutting edge -6 deg inclination 156.2 mm L protruding 27 mm maximum overhang 0 deg ramping C insert shape 6.4 Nm torque 31.75 mm H functional 38.1 mm W functional 152.4 mm L functiona
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCKNR 20 5D |
| ANSI Code | DCKNR 20 5D |
| Back of Bar to Cutting Edge | Steel |
| Catalog Number | 5730580 |
| Country of Origin | SE |
| Finish | DCKNR/L |
| Gross Weight Per Pack | 3.7400 lb |
| Head Length | CNMG 16 06 12 |
| Inscribed Circle | Rectangular |
| Insert Seat Size | 5/8 |
| ISO Code | DCKNR 20 5D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | T-Max® P |
| UPC 11 | 69826218782 |
| UPC 12 | 69826218782 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 16 06 12 |
| Lead Angle | 15 deg |
| Overall Length | 6.1496 in |
| Rake | -6 deg |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Tool Holder Style | DCKNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 156.2 mm L protruding |
| 27 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 6.4 Nm torque |
| 31.75 mm H functional |
| 38.1 mm W functional |
| 152.4 mm L functiona |
