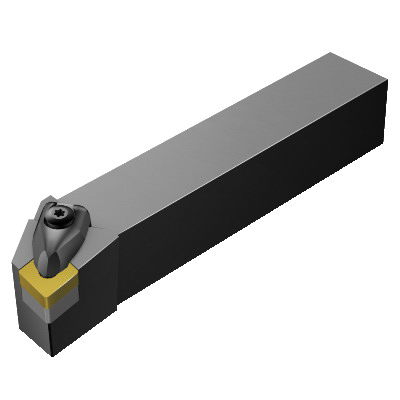

Sandvik Coromant 5730548 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
281433
MFG #: 5730548
Sandvik Coromant
207.08000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNL 20 4D, ISO Code: DCLNL 20 4D, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 32 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 31.75 mm H functional |
| 38.1 mm W functional |
| 152.4 mm L functional |
