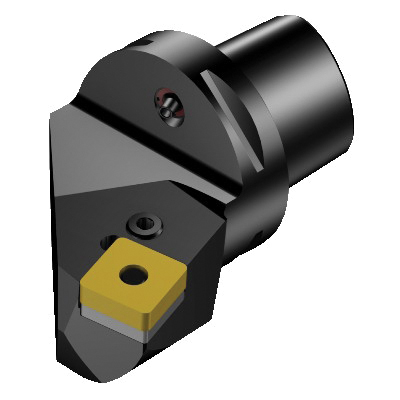

Sandvik Coromant 5730090 T-Max® P Turning Cutting Unit, 3.1496 in, 5.2755 in OAL, Right Hand, SNMG 250724 Insert
Modular Turning/Profiling Cutting Heads
926180
MFG #: 5730090
Sandvik Coromant
380.00000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 5.2755 in Overall Length, S-Shape Insert, Insert Compatibility: SNMG 250724, Right Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
- Applications
- Features
| For general turning, ranging from medium to large components |
| Stable and secure clampingChip control and process securityExcellent surface finishReliable and secure machining, even in roughing applicationsPossibility to optimize by using damped Silent Tools™-6 deg inclination86 mm L protruding10 deg ramping17 Nm torque1 in insert seat size80 mm maximum overhang15 deg lead-6 deg rakeBolt and segment clamping adaptive interface |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Decentral coolant exit with nozzles, adjustable |
| 80 mm Dia connection |
| 75 deg cutting edge |
| -6 deg inclination |
| 86 mm L protruding |
| 10 deg ramping |
| 17 Nm torque |
| 1 in insert seat size |
| 80 mm maximum overhang |
| 15 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C8-PSKNR-55080-25 |
| ISO Code: C8-PSKNR-55080-25 |
