Sandvik Coromant

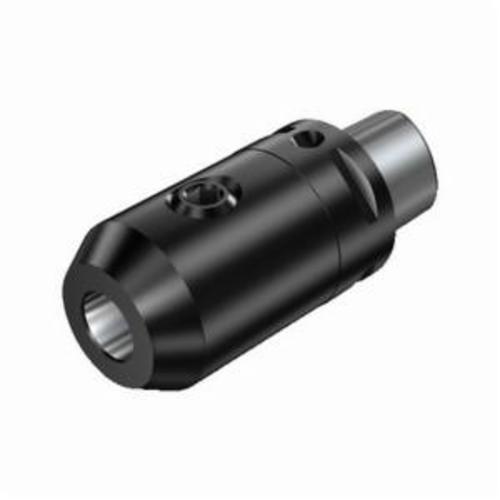

Sandvik Coromant 5729964, 1.25 x 2.4803 in Shank Connection, Coromant® Capto® x Weldon Shank, C6 Taper, 3.1496 in Hole, 2.7559 in Projection
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5729964, 1.25 x 2.4803 in Shank Connection, Coromant® Capto® x Weldon Shank, C6 Taper, 3.1496 in Hole, 2.7559 in Projection
SKU326350
MFGR #5729964
Your Cost: $669.78/ea
Sandvik Coromant Adapter, 3.1496 in Hole Dia, Coromant® Capto® x Weldon Shank, C6 Taper, 2.7559 in Projection, 7.7481 in Overall Length, 2.4803 in Overall Dia, 1.25 x 2.4803 in Shank Connection, ANSI Code: C6-A391.20-31 085, ISO Code: C6-A391.20-31 085
Sandvik Coromant Adapter, 3.1496 in Hole Dia, Coromant® Capto® x Weldon Shank, C6 Taper, 2.7559 in Projection, 7.7481 in Overall Length, 2.4803 in Overall Dia, 1.25 x 2.4803 in Shank Connection, ANSI Code: C6-A391.20-31 085, ISO Code: C6-A391.20-31 085
Alternate Catalog Number C6-A391.20-31 085 Catalog Number 5729964 Country of Origin JP Gross Weight Per Pack 2.2000 lb Hole Diameter 3.1496 in Item Group 530 Nose Diameter 123.014 mm Overall Length 7.7481 in Quick Change System C6 Taper Size C6 Type 5758319 Key and 5763355 Screw UPC 11 69826251715 UPC 12 69826251715 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Body Diameter 2.48 Projection 2.7559 in 0 - 30 deg body half taper Axial concentric and radial coolant entry 20 bar coolant Axial concentric coolant exit 85 mm L body 40 Nm torque Cx-A391.20 (3) tool style Steel body 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C6-A391.20-31 085 |
| Catalog Number | 5729964 |
| Country of Origin | JP |
| Gross Weight Per Pack | 2.2000 lb |
| Hole Diameter | 3.1496 in |
| Item Group | 530 |
| Nose Diameter | 123.014 mm |
| Overall Length | 7.7481 in |
| Quick Change System | C6 |
| Taper Size | C6 |
| Type | 5758319 Key and 5763355 Screw |
| UPC 11 | 69826251715 |
| UPC 12 | 69826251715 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Body Diameter | 2.48 |
| Projection | 2.7559 in |
| 0 - 30 deg body half taper |
| Axial concentric and radial coolant entry |
| 20 bar coolant |
| Axial concentric coolant exit |
| 85 mm L body |
| 40 Nm torque |
| Cx-A391.20 (3) tool style |
| Steel body |
| 20 life cycle state |
