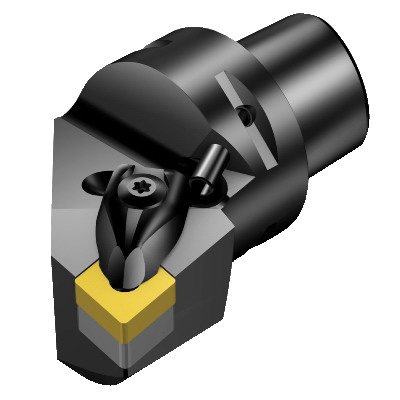

Sandvik Coromant 5729625 T-Max® P Turning Cutting Unit, 3.1496 in, 5.0393 in OAL, Left Hand, CNMG 190612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5729625 T-Max® P Turning Cutting Unit, 3.1496 in, 5.0393 in OAL, Left Hand, CNMG 190612 Insert
SKU1134544
MFGR #5729625
Your Cost: $536.60/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 5.0393 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 190612, Left Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 5.0393 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 190612, Left Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
Alternate Catalog Number C8-DCLNL-55080-19 Catalog Number 5729625 Country of Origin SE Gross Weight Per Pack 5.7500 lb Head Length|Projection 80 mm Insert Style CNMG Item Group 410 Material Steel Overall Length 128 mm Series T-Max® P UPC 11 69826219850 UPC 12 69826219850 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 55 mm Cutting Direction Left Hand Insert Compatibility CNMG 190612 Insert Holding Method Rigid Clamp Internal or External External System Size C8 Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Decentral coolant exit with nozzles, adjustable 80 mm Dia connection 100 - 250 mm Dia minimum bore 95 deg cutting edge -6 deg inclination 0 deg ramping 6.4 Nm torque 3/4 in insert seat size 1/4 in THK insert 80 mm maximum overhang -5 deg lead -6 deg Negative rake Bolt and segment clamping adaptive interface ANSI Code: C8-DCLNL-55080-19
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C8-DCLNL-55080-19 |
| Catalog Number | 5729625 |
| Country of Origin | SE |
| Gross Weight Per Pack | 5.7500 lb |
| Head Length|Projection | 80 mm |
| Insert Style | CNMG |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 128 mm |
| Series | T-Max® P |
| UPC 11 | 69826219850 |
| UPC 12 | 69826219850 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 55 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 190612 |
| Insert Holding Method | Rigid Clamp |
| Internal or External | External |
| System Size | C8 |
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Decentral coolant exit with nozzles, adjustable |
| 80 mm Dia connection |
| 100 - 250 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 6.4 Nm torque |
| 3/4 in insert seat size |
| 1/4 in THK insert |
| 80 mm maximum overhang |
| -5 deg lead |
| -6 deg Negative rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C8-DCLNL-55080-19 |
