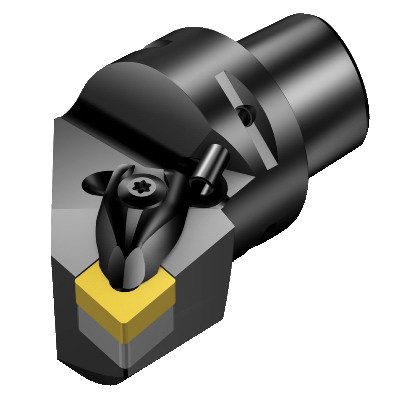

Sandvik Coromant 5729606 T-Max® P Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Right Hand, CNMG 120408 Insert
Modular Turning/Profiling Cutting Heads
601857
MFG #: 5729606
Sandvik Coromant
356.00000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.559 in Head Length/Projection, 4.0551 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Decentral coolant exit with nozzles, adjustable |
| 63 mm Dia connection |
| 110 - 190 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 3.9 Nm torque |
| 1/2 in insert seat size |
| 3/16 in THK insert |
| 65 mm maximum overhang |
| -5 deg lead |
| -6 deg Negative rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-DCLNR-45065-12 |
