Sandvik Coromant

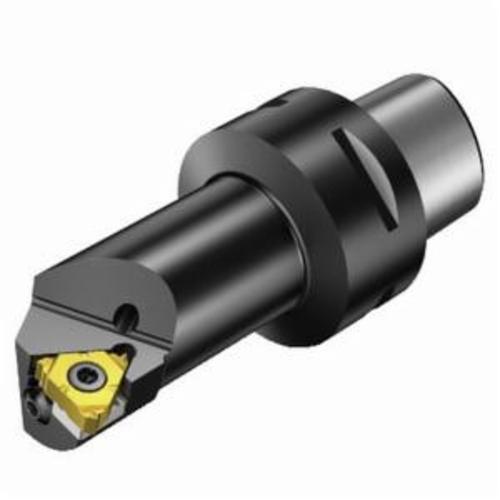

Sandvik Coromant 5729503 CoroThread® 266, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5729503 CoroThread® 266, Left Hand
SKU1227786
MFGR #5729503
Your Cost: $789.80/ea
Sandvik Coromant Thread Turning Cutting Unit, Series: CoroThread® 266, Left Hand Cutting, 0.5511 in Center to Cutting Edge, 2.7559 in Head Length/Projection
Sandvik Coromant Thread Turning Cutting Unit, Series: CoroThread® 266, Left Hand Cutting, 0.5511 in Center to Cutting Edge, 2.7559 in Head Length/Projection
Alternate Catalog Number C6-266LKF-14070-16 Axial Rake Angle Screw clamp Catalog Number 5729503 Country of Origin SE Gross Weight Per Pack 1.21000 lb Hand Orientation Left Hand Head Length|Projection 2.7559 in Insert Holding Method CoroThread® 266 Item Group 410 Maximum Hole Depth Triangle Lay-Down Minimum Hole Diameter 1.654" Radial Rake Angle Internal Rake Angle -15 Series CoroThread® 266 System Size 5762686 Right Hand Shim, 5762934 Shim Screw, 5763175 Insert Screw, 5764102 Key and 5764302 Nozzle Torque 2 FT-LBS Type CoroThread® 266 UPC 11 69826250509 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.5511 in Cutting Direction Left Hand Head Length 5680049-05 Insert Style 5513020-13 Neck Diameter 5512032-05 Thread Type Left Hand Bolt and segment clamping machine side adaptive interface 20 life cycle state -15 deg axial clearance 0 deg body workpiece side 18.5 mm Dia steel body Axial concentric and radial entry 10 bar coolant 40 - 60 deg insert screw, rail bottom Axial inclined exit 63 mm Dia connection25 mm Dia minimum bore -15 deg rake orthogonal -1 deg inclination 42 mm L usable 266.LL-16.. compatible insert 108 mm OAL T - Triangle insert shape 3/8 in insert seat 1 deg thread helix correction 3 Nm torque Cx-266R/LKF tool style
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C6-266LKF-14070-16 |
| Axial Rake Angle | Screw clamp |
| Catalog Number | 5729503 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.21000 lb |
| Hand Orientation | Left Hand |
| Head Length|Projection | 2.7559 in |
| Insert Holding Method | CoroThread® 266 |
| Item Group | 410 |
| Maximum Hole Depth | Triangle Lay-Down |
| Minimum Hole Diameter | 1.654" |
| Radial Rake Angle | Internal |
| Rake Angle | -15 |
| Series | CoroThread® 266 |
| System Size | 5762686 Right Hand Shim, 5762934 Shim Screw, 5763175 Insert Screw, 5764102 Key and 5764302 Nozzle |
| Torque | 2 FT-LBS |
| Type | CoroThread® 266 |
| UPC 11 | 69826250509 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.5511 in |
| Cutting Direction | Left Hand |
| Head Length | 5680049-05 |
| Insert Style | 5513020-13 |
| Neck Diameter | 5512032-05 |
| Thread Type | Left Hand |
| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| -15 deg axial clearance |
| 0 deg body workpiece side |
| 18.5 mm Dia steel body |
| Axial concentric and radial entry |
| 10 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Axial inclined exit |
| 63 mm Dia connection25 mm Dia minimum bore |
| -15 deg rake orthogonal |
| -1 deg inclination |
| 42 mm L usable |
| 266.LL-16.. compatible insert |
| 108 mm OAL |
| T - Triangle insert shape |
| 3/8 in insert seat |
| 1 deg thread helix correction |
| 3 Nm torque |
| Cx-266R/LKF tool style |
