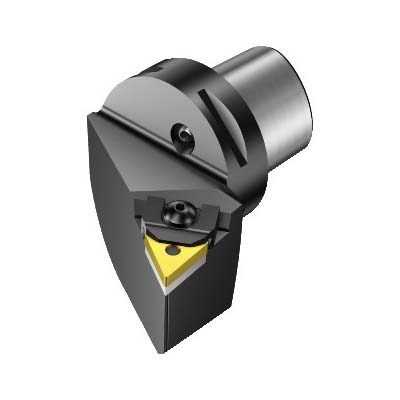

Sandvik Coromant 5729301 T-Max® P Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand, TNMG 220408 Insert
Modular Turning/Profiling Cutting Heads
1125043
MFG #: 5729301
Sandvik Coromant
431.44000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.559 in Head Length/Projection, 4.0551 in Overall Length, T-Triangle Insert, Insert Compatibility: TNMG 220408, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
- Features
0 deg body machine side |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
10 bar coolant |
Wedge and hole clamping |
Decentral coolant exit with nozzles, adjustable |
63 mm Dia connection |
93 deg cutting edge |
-6 deg inclination |
22 deg ramping |
4.5 Nm torque |
1/2 in insert seat size |
65 mm maximum overhang |
-3 deg lead |
-6 deg rake |
Bolt and segment clamping adaptive interface |
ANSI Code: C6-MTJNL-45065-22 |
ISO Code: C6-MTJNL-45065-22 |
