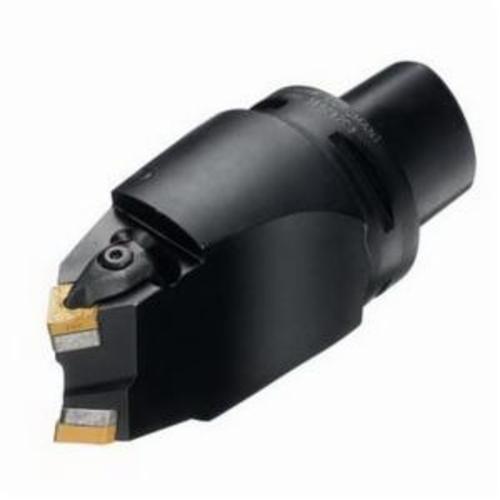

Sandvik Coromant 5729221 CoroPlex™ TT Multi Functional Tool, CNMG 120408 and DNMG 150608 Insert, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5729221 CoroPlex™ TT Multi Functional Tool, CNMG 120408 and DNMG 150608 Insert, Left Hand
SKU1227525
MFGR #5729221
Your Cost: $1,115.02/ea
Sandvik Coromant Multi Functional Tool, Series: CoroPlex™ TT, 5.7086 in Overall Length, Insert Compatibility: CNMG 120408 and DNMG 150608, 1/2 Insert Seat, Left Hand Cutting, ANSI Code: C5-T-DCM12DDM15L115, ISO Code: C5-T-DCM12DDM15L115, -6 deg Rake, Steel
Sandvik Coromant Multi Functional Tool, Series: CoroPlex™ TT, 5.7086 in Overall Length, Insert Compatibility: CNMG 120408 and DNMG 150608, 1/2 Insert Seat, Left Hand Cutting, ANSI Code: C5-T-DCM12DDM15L115, ISO Code: C5-T-DCM12DDM15L115, -6 deg Rake, Steel
Alternate Catalog Number C5-T-DCM12DDM15L115 ANSI Code C5-T-DCM12DDM15L115 Back of Bar to Cutting Edge 70mm Catalog Number 5729221 Country of Origin SE Finish CNMG 12 04 08 Gross Weight Per Pack 3.74000 lb Head Length 145 mm Inscribed Circle CNMG 12 04 08, DNMG 15 06 08 Insert Seat Size 1/2 ISO Code C5-T-DCM12DDM15L115 Item Group 410 Lead Angle Steel Material Steel Overall Length 5.7086 in Rake -6 deg Series CoroPlex™ TT Shank Size 1/2 in Shank Type C5-T-DCM12DDM15L115 Tool Holder Style C5-T-DCM12DDM15L115 Type CoroPlex™ TT UPC 11 69826227573 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility CNMG 120408 and DNMG 150608 Bolt and segment clamping machine side adaptive interface 20 life cycle state 45 deg body machine side 0 deg body workpiece side Axial concentric and radial entry 80 bar coolant Axial inclined exit 50 deg cutting edge 115 mm L functional 400 insert index 115 mm overhang 45 deg ramping C, D insert shape 1/2 in insert seat Cx-T-DC tool style 0.5 mm W functional 20 mm H functional 50 mm Dia connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C5-T-DCM12DDM15L115 |
| ANSI Code | C5-T-DCM12DDM15L115 |
| Back of Bar to Cutting Edge | 70mm |
| Catalog Number | 5729221 |
| Country of Origin | SE |
| Finish | CNMG 12 04 08 |
| Gross Weight Per Pack | 3.74000 lb |
| Head Length | 145 mm |
| Inscribed Circle | CNMG 12 04 08, DNMG 15 06 08 |
| Insert Seat Size | 1/2 |
| ISO Code | C5-T-DCM12DDM15L115 |
| Item Group | 410 |
| Lead Angle | Steel |
| Material | Steel |
| Overall Length | 5.7086 in |
| Rake | -6 deg |
| Series | CoroPlex™ TT |
| Shank Size | 1/2 in |
| Shank Type | C5-T-DCM12DDM15L115 |
| Tool Holder Style | C5-T-DCM12DDM15L115 |
| Type | CoroPlex™ TT |
| UPC 11 | 69826227573 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 120408 and DNMG 150608 |
| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| 45 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric and radial entry |
| 80 bar coolant |
| Axial inclined exit |
| 50 deg cutting edge |
| 115 mm L functional |
| 400 insert index |
| 115 mm overhang |
| 45 deg ramping |
| C, D insert shape |
| 1/2 in insert seat |
| Cx-T-DC tool style |
| 0.5 mm W functional |
| 20 mm H functional |
| 50 mm Dia connection |
