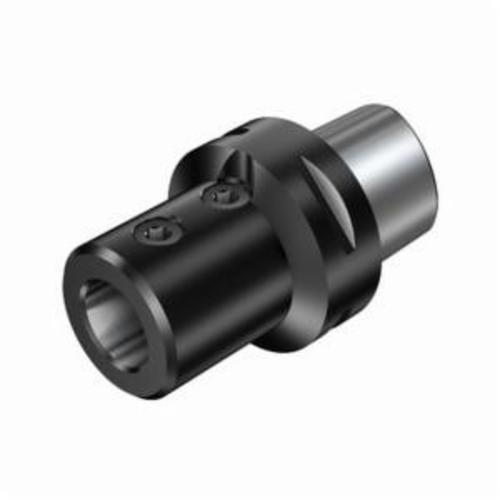

Sandvik Coromant 5729159 Coromant Capto® to ISO 9766, 1.574 in Dia Inside Hole, 4.842 in OAL, 3.346 in
Drill Adapters
326361
MFG #: 5729159
Sandvik Coromant
501.26000
/ ea
Sandvik Coromant Adapter, Coromant Capto® to ISO 9766, 1.574 in Inside Hole Dia, 3.346 in Gage Length/Projection, 2.559 in Nose Dia, 4.842 in Overall Length, ANSI Code: C6-391.27-40 085, ISO Code: C6-391.27-40 085, System Size Machine Side: C6
- Features
| Capto (segment and bolt) machine side compatible interface |
| Cylindrical clamping (ISO9766 drill shank) workpiece side compatible interface |
| 65 mm Dia body |
| 0 deg body half taper |
| Steel body |
| Axial concentric and radial coolant entry |
| 20 bar coolant |
| Axial concentric coolant exit |
| 63 mm Dia machine side connection |
| 40 Nm torque |
| Cx-391.27 (1) tool style |
| 20 life cycle state |
