Sandvik Coromant

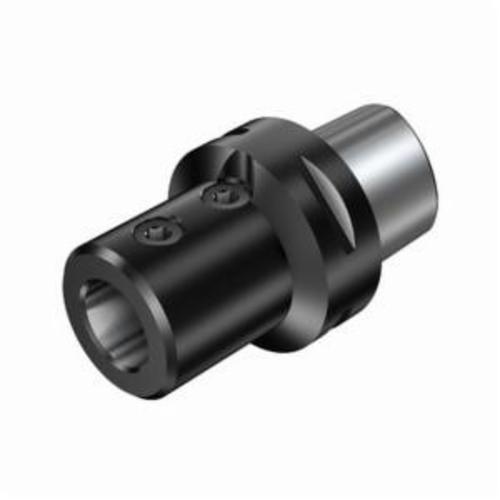

Sandvik Coromant 5729157 Coromant Capto® to ISO 9766, 0.984 in Dia Inside Hole, 4.33 in OAL, 2.834 in
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5729157 Coromant Capto® to ISO 9766, 0.984 in Dia Inside Hole, 4.33 in OAL, 2.834 in
SKU848128
MFGR #5729157
Your Cost: $602.81/ea
Sandvik Coromant Adapter, Coromant Capto® to ISO 9766, 0.984 in Inside Hole Dia, 2.834 in Gage Length/Projection, 1.771 in Nose Dia, 4.33 in Overall Length, ANSI Code: C6-391.27-25 070A, ISO Code: C6-391.27-25 070A, System Size Machine Side: C6
Sandvik Coromant Adapter, Coromant Capto® to ISO 9766, 0.984 in Inside Hole Dia, 2.834 in Gage Length/Projection, 1.771 in Nose Dia, 4.33 in Overall Length, ANSI Code: C6-391.27-25 070A, ISO Code: C6-391.27-25 070A, System Size Machine Side: C6
Alternate Catalog Number C6-391.27-25 070A ANSI Code C6-391.27-25 070A Catalog Number 5729157 Country of Origin SE Drawbar Thread Size C6-391.27-25 070A Gage Length|Projection 2.834 in Gross Weight Per Pack 2.4200 lb Includes 1.2kg ISO Code C6-391.27-25 070A Item Group 530 Nose Diameter 1.771 in Series Coromant® Capto® x ISO 9766 System Size Machine Side C6 Type Coromant Capto® to ISO 9766 UPC 11 69826221473 UPC 12 69826221473 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Inside Hole Diameter 0.984 in Overall Length 4.33 in Usable Length C6-391.27-25 070A Capto (segment and bolt) machine side compatible interface Cylindrical clamping (ISO9766 drill shank) workpiece side compatible interface 63 mm Dia body 65 deg body half taper Steel body Axial concentric and radial coolant entry 20 bar coolant Axial concentric coolant exit 63 mm Dia machine side connection 20 Nm torque Cx-391.27 (7) tool style 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C6-391.27-25 070A |
| ANSI Code | C6-391.27-25 070A |
| Catalog Number | 5729157 |
| Country of Origin | SE |
| Drawbar Thread Size | C6-391.27-25 070A |
| Gage Length|Projection | 2.834 in |
| Gross Weight Per Pack | 2.4200 lb |
| Includes | 1.2kg |
| ISO Code | C6-391.27-25 070A |
| Item Group | 530 |
| Nose Diameter | 1.771 in |
| Series | Coromant® Capto® x ISO 9766 |
| System Size Machine Side | C6 |
| Type | Coromant Capto® to ISO 9766 |
| UPC 11 | 69826221473 |
| UPC 12 | 69826221473 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Inside Hole Diameter | 0.984 in |
| Overall Length | 4.33 in |
| Usable Length | C6-391.27-25 070A |
| Capto (segment and bolt) machine side compatible interface |
| Cylindrical clamping (ISO9766 drill shank) workpiece side compatible interface |
| 63 mm Dia body |
| 65 deg body half taper |
| Steel body |
| Axial concentric and radial coolant entry |
| 20 bar coolant |
| Axial concentric coolant exit |
| 63 mm Dia machine side connection |
| 20 Nm torque |
| Cx-391.27 (7) tool style |
| 20 life cycle state |
