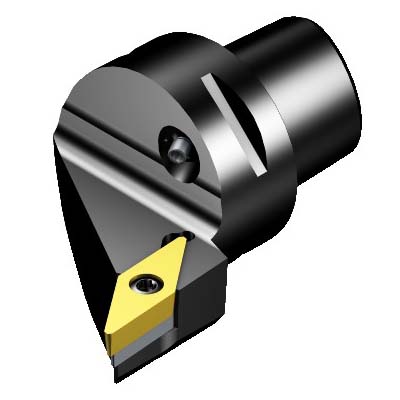

Sandvik Coromant 5729036 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Right Hand, VBMT 160408 and VCMT 160408 Insert
Modular Turning/Profiling Cutting Heads
574301
MFG #: 5729036
Sandvik Coromant
523.15000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Right Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
- Features
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral coolant exit with nozzles, adjustable |
| 63 mm Dia connection |
| 93 deg cutting edge |
| 0 deg inclination |
| 50 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 65 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-SVJBR-45065-16 |
| ISO Code: C6-SVJBR-45065-16 |
