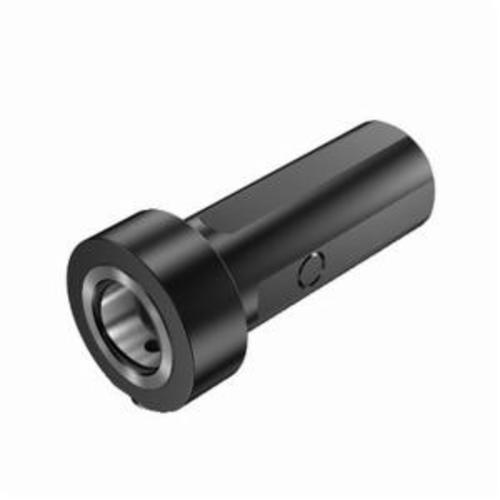

Sandvik Coromant 5728588 Neutral, Cylindrical Shank with 3-Flats x Coromant® Capto® Shank, C4 Workpiece Side, 1-1/2 in, 4.7244 in OAL, 2.0275 in Dia Body
Clamping Units
328285
MFG #: 5728588
Sandvik Coromant
1300.57000
/ ea
Sandvik Coromant Clamping Unit, Neutral, 1-1/2 in, 2.0275 in Body Dia, 0.7874 in Gage Length, 4.7244 in Overall Length, 2.0275 in Overall Width, 1.0236 in Centerline Height, ANSI Code: C4-NC2000-10020-A24, ISO Code: C4-NC2000-10020-A24, 3.937 in Shank Length, Cylindrical Shank with 3-Flats x Coromant® Capto® Shank, C4 System Size Workpiece Side
- Features
| 0 deg body half taper |
| Radial coolant entry |
| G1/8 coolant thread |
| 80 bar coolant |
| Radial coolant exit |
| 20 mm overhang |
| 50 Nm torque |
| Cx-NC2000 tool style |
| 38.1 mm body machine side |
| 40 mm workpiece side connection |
| 20 life cycle state |
